BSL 48V (51.2V) 8.8kWh 172Ah Stubby LiFePO4 battery
BSL 48V 8.8 kWh batteries are widely used in grid-connected or off-grid solar battery storage systems and can be extended to any large-scale home or commercial system. Using the latest LiFePo4 battery, the LiFePo4 battery life cycle is much longer than other types of lithium batteries, reducing maintenance costs in use.Deep cycle lithium 48v 8.8kwh battery can be used with the most popular inverter.
Communication Compatible Inverters:
Victron
Sunsynk / Deye
Features:
Eco-friendly
Lithium iron phosphate battery(LiFePO4)
Currently the safest lithium technology
Excellent resistance to abuse
Less than 3% self-discharging
Maintenance-free, modular, and lightweight
Up to 60% weight saving
Battery monitoring storage history
Built-in safety protection
Quality guaranteed
10 Years Warranty
15-18 Years Designed service life
250A DC Breaker–on/off switch
Applications
Marine Applications
Uninterruptable Power Supply
Energy Storage Systems
Floor Sweeper
Electrical Vehicles
Communications Systems
Safety
BSLBATT® batteries are based on Lithium iron battery technology (LiFePO4).
This is the safest Lithium technology available today.
On top of that our bespoke casing and electronics further increase safety and durability.
Technology
BSLBATT’s BATTERIES do not contain leadLiFePO4 technology is an environmentally friendly way to store energy.
DC 3 Pole Battery Fuse Disconnector Box 160A 48V with 2 x 125A/160A Fuse Links
Battery Disconnect Fuse Holder ideal for 3Kw-5Kw inverters, between battery and inverter.
Poles 3
Use NH00 60A-160A blade fuse
50Ka rating
Description
The function of a fuse holder isto integrate fuses safely in electrical circuits,ensure a robust current path (voltage does not creep to other components)and provide a method to replace fuses once they manage overcurrent events as intended.
NH fuses (also known as NH Knife Blade Fuses or DIN NH Blade Fuses) were defined in the German DIN standard 43620 around 1944. They are primarily designed as general purpose fuses for the protection of conductors. NH fuses are one-time fuses, meaning once they have blown, they must be replaced with a new fuse with the same characteristics.
PLEASE NOTE: SOLAR PANELS NOT INCLUDED.
Description
100% energy saving in day time. Only solar panel drive.
T3 Compressor
AC grid power limiter, limit AC power from 0-600W
AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)
No inverter, no battery, no charge controller
Full DC driven
Wide operating temperature (-10℃ to 58 ℃)
Long warranty years
Deye hybrid ACDC solar air conditioners require no batteries, and only a few PV panels to deliver huge savings. Duringthe day, when air conditioning is needed the most, you can operate this unit partly or up to 100% by it’s independent solarpanels to achieve maximum efficiency. At night, you can continue to save due to it’s high efficiency.The WIFI functionality allows full control, daily and weekly timers, complete visibility with AC and DC consumption andthe history of all power consumption.Advised Solar Panels: (3 – 4)* 330W in series
Dimensions & certification
Net weight indoor: 9kg
Net weight outdoor: 34kg
Net size indoor (mm): 845 x 205 x 295
Net size outdoor (mm): 802 x 564 x 323
Description
General Data• Colorful touch LCD with IP65 Protection Degree• AC Couple to retrofit existing Solar System• Maximum 16 Units Parallel for On-Grid and Off-Grid operation• Supports Multiple Batteries in Parallel• Maximum Charging / Discharging Current of 290A• 6 Time Periods for Battery Charging / Discharging• Support for storing Energy from Diesel Generator• Self-Consumption and Feed-In to Grid• Auto Restart while AC is recovering• Programmable Supply-Priority for Battery or Grid• Programmable multiple operation modes: On-Grid, Off-Grid and UPS• Configurable Battery Charging: Current / Voltage based on applications by LCD Setting• Configurable AC / Solar / Generator Charger priority by LCD Setting• Compatible with Mains Voltage or Generator Power• Overload / Over Temperature / Short Circuit protection• Smart Battery Charger design for optimized Battery performance• Limit Function to prevent excess power overflow to the Grid• Supports WIFI monitoring and 2 Strings of each MPPT• Smart settable three stages MPPT Charging for optimized Battery performance• Time-Of-Use Function• Smart-Load Function
Related products
Description
Package Includes WIFI Dongle & Current Transformer
Max Efficiency of 97.6%
2 MPPT (Maximum Power Point Tracker)
RS485 / CAN Communication Ports
Load or Home power first with Zero Export to the Grid
IP65 Ingress Protection
High Power Factor
2 kinds of AC couple method to update existing solar system to energy storage system
Supports Generator Connection
Six stages time of use setting
Support multiple parallels
Touchscreen Interface
Update existing solar on-grid system to a hybrid system
Use Gen input as crucial load output
Compatible with SHOTO, PYLONTECH, LG, BYD etc, brand battery
Output: 230V/400V AC Three Phase @ 50Hz/60Hz
PV Rapid Shutdown Control, PV Arc Fault detection, input lightning protection, multiple inverters in parallel
Multiple working modes: Grid-Tied, Hybrid or Off-Grid
Simultaneously manages power to / from Panels, Batteries, Grid, Load, and Generator
UPS time: less than 5ms
Charge and Discharge up to 240A, 12Kw
Wall Mounted
DATASHEET
Manual 1/2
Manual 2/2
Additional information
Weight
36.8 kg
Dimensions
65.8 × 42.2 × 28.1 cm

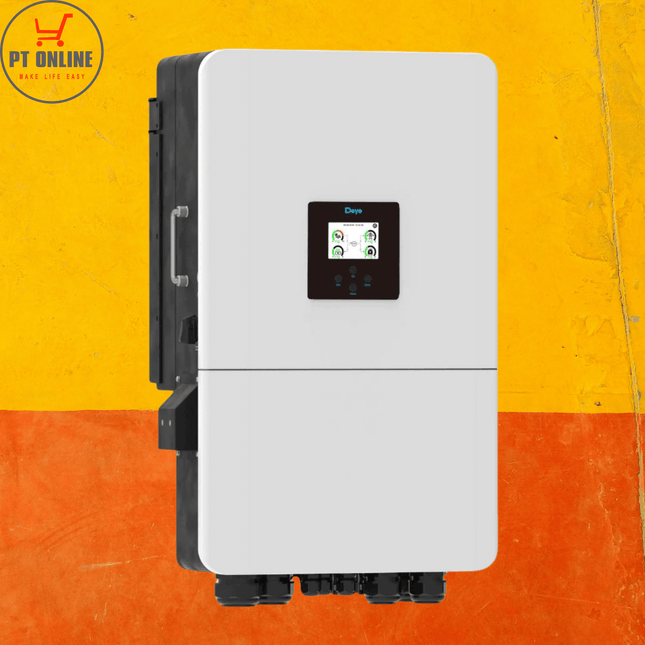

⚡ Deye 15kW Three Phase LV Hybrid Inverter – SUN-15K-SG05LP3-EU-SM2
VOC: 800V | Battery: 48V | CT & WiFi Included
The Deye 15kW Three Phase Low Voltage Hybrid Inverter is a powerful and flexible solution for residential, agricultural, or commercial solar systems. Designed for both on-grid and off-grid applications, this advanced inverter seamlessly integrates solar, battery, and grid power with exceptional efficiency and intelligent energy management.
✅ Key Features:
High PV Capacity: Supports up to 24,000W of solar input with a max voltage of 800V
Massive Battery Current Handling: Charge/discharge up to 350A
Flexible 48V Battery Support: Compatible with lithium-ion or lead-acid batteries
Smart Load Management: 6 configurable time slots for optimized battery usage
Full 3-Phase Output: 100% unbalanced load handling – perfect for uneven 3-phase systems
Parallel Ready: Connect up to 10 units for large-scale installations
AC Coupling Compatible: Retrofit existing solar systems easily
Built-in Monitoring: WiFi & CT module included for real-time system tracking
🔒 Advanced Safety & Protection:
Reverse polarity, overcurrent, short circuit, overvoltage, and thermal protection
Residual current & arc fault detection
Type II surge protection (AC & DC sides)
Certified for global grid codes (IEC, VDE, CEI, NRS, EN, etc.)
📐 Technical Specs:
Rated Power: 15,000W
Max PV Input Power: 24,000W
MPPT Voltage Range: 160–650V
Max PV Voltage: 800V
Max Efficiency: 97.6% | MPPT Efficiency: >99%
IP Rating: IP65 – Weather-resistant for outdoor installations
Cooling: Intelligent air cooling
Weight: 51.9kg
Dimensions: 456 × 750 × 268.5 mm
Noise Level: <60dB
Grid Type: 3L + N + PE (Three-phase + Neutral + Earth)
💡 Perfect For:
Medium to large residential homes
Farms or agricultural energy systems
Light commercial or industrial buildings
Systems requiring high battery throughput and unbalanced 3-phase loads

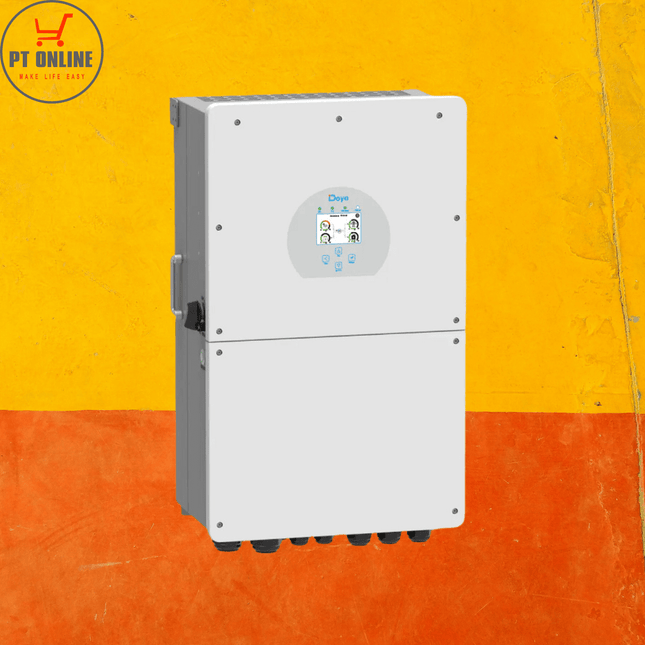

Deye 16kw hybrid inverter is an innovative and smart solar hybrid inverter that provides solar energy for houses and commercial buildings.
This 16kw Deye hybrid inverter supports the option of on-grid and off-grid power to protect your investment in PV Plants by providing an alternative source of electricity when grid power is interrupted. It has a max 16pcs parallel for on-grid and off-grid operation, efficient MPPT tracking algorithm makes it ideal for a PV power plant or residential rooftop systems, supports multiple batteries parallels, and has max charging and discharging current of 290A. In summary, the 16kw Deye Hybrid Inverter is a perfect replacement for your existing DC or AC coupling inverter in existing PV power plant.
The Deye Hybrid Inverter is a reliable and powerful inverter that allows you to make the most of your solar power. With a maximum output power of 16kW, the Deye Hybrid Inverter can be paired with up to 16 solar panels to harvest the sun’s energy. The Deye inverter also has the capacity to store power from up to 5 different batteries.
Deye 16KW Hybrid Inverter has the following features:
A high-resolution LCD screen gives you all the information you need about your inverter.
IP65 protection degree.
DC couple and AC couple to retrofit existing solar system.
You can connect up to 16 Deye Inverters in parallel, making it possible to have AC output of up to 256kW with one input PV array!; Support multiple batteries parallel.
Max. charging/discharging current of 290A.
6 time periods for battery charging/discharging.
Support storing energy from a diesel generator.
LCD Touch display and buttons, simple solar system for residential use.
Monitoring is possible via a web browser or mobile app, so you can see how your solar system is performing at any time.
The Deye inverter is a hybrid inverter that uses lithium-ion and lead-acid batteries.
It comes with a warranty of 5 years.
Technical Data.
Model: SUN-16K-SG01LP1-EU
Battery Type: Lead-acid or Li-lon.
Battery Voltage Range: 40-60V.
Max. Charging Current: 290A.
Max. Discharging Current: 290A.
UPS Power: 16000W.
External Temperature Sensor: Yes.
Charging Curve: 3 Stages / Equalization.
Charging Strategy for Li-Ion Battery: Self-adaption to BMS.
PV String Input Data.
Max. DC Input Power: 20800W.
Max. DC Input Voltage: 500V.
Start-up Voltage: 50V.
MPPT Range: 150-425V.
Rated DC Input Voltage: 370V.
PV Input Current: 26A+26A+26A.
Max. PV ISC: 44A+44A+44A.
Number of MPPT / Strings per MPPT: 3/2.
General Data.
Operating Temperature Range: -45~60º C, >45º C derating.
Cooling: Smart cooling.
Noise: <30 dB.
Communication with BMS: RS485; CAN.
Weight: 51.5kg.
Size: 464W×798.4H×300Dmm.
Protection Degree: IP65.
Installation Style: Wall-mounted.
Warranty: 5 years.
Max. Number of Parallel (PCS): 16.
Efficiency.
Max. Efficiency: 97.60%.
Euro Efficiency: 96.50%.
MPPT Efficiency: 99.90%.
PLEASE NOTE: SOLAR PANELS NOT INCLUDED.
Description
100% energy saving in day time. Only solar panel drive.
T3 Compressor
AC grid power limiter, limit AC power from 0-600W
AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)
No inverter, no battery, no charge controller
Full DC driven
Wide operating temperature (-10℃ to 58 ℃)
Long warranty years
Deye hybrid ACDC solar air conditioners require no batteries, and only a few PV panels to deliver huge savings. Duringthe day, when air conditioning is needed the most, you can operate this unit partly or up to 100% by it’s independent solarpanels to achieve maximum efficiency. At night, you can continue to save due to it’s high efficiency.The WIFI functionality allows full control, daily and weekly timers, complete visibility with AC and DC consumption andthe history of all power consumption.Advised Solar Panels: (3 – 6)* 330W in series
Dimensions & Certification
Net weight indoor: 15Kg
Net weight outdoor: 37Kg
Net size indoor (mm): 1085 x 330 x 239
Net size outdoor (mm): 802 x 564 x 323
Deye 20kW Hybrid – 3 Phase Inverter Features
Three Phase – High Voltage
Colourful Touch LCD Screen
Max Charging/Discharging Current of 50A
Parallel up to 10 Units
Compact & Stylish
Safe and Easy Installation
5-year warranty
Set system parameters remotely with FREE SOLARMAN PRO App
If installed with a Deye battery, the warranty on the inverter will increase to 10 Years.
This Deye 20kW Hybrid Inverter is a 3 Phase inverter which must be paired with a high voltage battery bank.
Deye is renowned for its reliable and safe products, ensuring continued productivity in the commercial sector with the use of Solar Power and battery backup (sold separately).
The Deye 20kW Hybrid Inverter is user-friendly and equipped with an intelligent monitoring platform, allowing you to shut down immediately in the event of an accident remotely. The Smart Monitoring Platform allows users to quickly and remotely set parameters and perform firmware updates.
The versatility of this inverter is amazing, you can:
Use it like a Grid-Tied, with panels only
Use it as a Load Shedding Solution, with batteries only
Use it in an Off-Grid situation, not connected to the grid
Use it in an On-Grid situation, connected to the grid
Use it as a UPS (Uninterrupted Power Supply)
Use it for Commercial purposes due to it’s Robust build
10-Year warranty is paired with Deye batteries
You can parallel 10 inverters to create a huge Solar System, ideal for commercial applications.
General Data• 100% Unbalanced Output per phase, Max. Output up to 50% rated power• AC-Couple to retrofit existing Solar System• Parallel up to 10 Units for On-Grid and Off-Grid operation• Support multiple Batteries in Parallel• Maximum Charging / Discharging Current of 350A• 48V Low Voltage Battery, transformer isolation design• 6 time periods for Battery Charging / Discharging• Support storing energy from Diesel Generator
PLEASE NOTE: SOLAR PANELS NOT INCLUDED.
Description
100% energy saving in day time. Only solar panel drive.
T3 Compressor
AC grid power limiter, limit AC power from 0-600W
AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)
No inverter, no battery, no charge controller
Full DC driven
Wide operating temperature (-10℃ to 58 ℃)
Long warranty years
Deye hybrid ACDC solar air conditioners require no batteries, and only a few PV panels to deliver huge savings. Duringthe day, when air conditioning is needed the most, you can operate this unit partly or up to 100% by it’s independent solarpanels to achieve maximum efficiency. At night, you can continue to save due to it’s high efficiency.The WIFI functionality allows full control, daily and weekly timers, complete visibility with AC and DC consumption andthe history of all power consumption.
Advised Solar Panel: (3 – 8)* 330W in series
Dimensions & Certification
Net weight indoor: 15Kg
Net weight outdoor: 48.5Kg
Net size indoor (mm): 1085 x 330 x 239
Net size outdoor (mm): 700 x 900 x 337
Revolutionize Your Energy: Deye 30KW Three-Phase Hybrid Inverter. Maximize solar efficiency with the Deye 30KW Hybrid Inverter featuring dual MPPT trackers and battery storage for robust energy management.
Features
Grid-tied, off-grid, and backup power capabilities.
Model: SUN-30K-SG01HP3-EU.
Max DC Input Power: 39000W.
Max DC Input Voltage: 1000V.
Start-up Voltage: 180V.
MPPT Voltage Range: 150-850V.
Rated DC Input Voltage: 600V.
Compatible with a variety of Batteries – HV (High Voltage)
5-year warranty.
