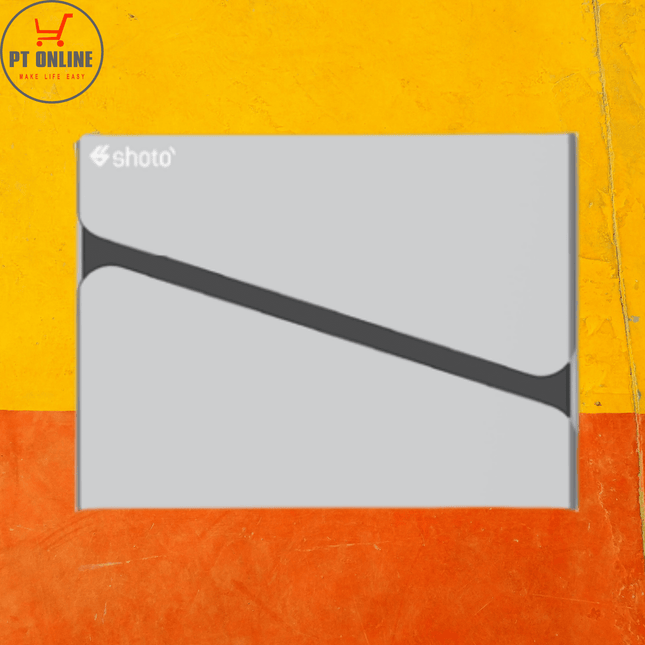

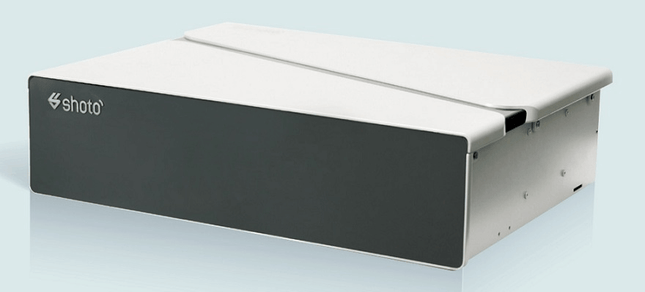

Shoto: 5.12Kwh Lithium Battery RM
16 cell 51.2V 100A
Description
The modular and scalable design allows it to be expanded to meet future energy requirements
More than 5000 cycles with 90% DOD and 10+ years design life
Compatible with the most universal hybrid inverters
Simple rack mounted structure to reduce the installation time and cost
DATASHEET
MANUAL
TECHNICAL/CERT
The Shoto SDC10-Box16 is a high-capacity 51.2V lithium household energy storage battery designed for residential solar systems. Built with LFP (Lithium Iron Phosphate) prismatic cells, it offers excellent safety, long cycle life, and high efficiency, making it ideal for grid-tied, hybrid, and off-grid solar installations.
Its modular design allows multiple units to be connected in parallel, enabling scalable energy storage solutions for homes and businesses.
This battery supports communication with most mainstream inverters via CAN and RS485, ensuring smooth integration into modern solar systems.
Key Features
• High Energy Capacity – 16.08kWh nominal energy storage• Long Lifespan – LFP cells designed for long cycle life• High Efficiency – ≥95% charge/discharge efficiency• Scalable System – Up to 20 batteries in parallel• Wide Compatibility – Works with most major inverter brands• Safe & Reliable – LFP chemistry with built-in safety protections• Natural Cooling Design – No fans required• Rack-Mounted Installation – Easy integration into energy storage setups
Technical Specifications
Specification
Value
Model
SDC10-Box16
Battery Type
314Ah LFP Prismatic Cell
Nominal Energy
16.08 kWh
Available Energy
14.47 kWh
Nominal Voltage
51.2 V
Operating Voltage Range
45 – 56.4 V
Max Output Power
7.2 kW
Peak Output Power
8 kW (10s)
Max Charging Current
100 A
Max Discharge Current
157 A
Charge/Discharge Efficiency
≥95%
Maximum Parallel Units
20
Communication
CAN / RS485
Installation
Rack-Mounted
Cooling
Natural Cooling
Dimensions
484 × 233 × 700 mm
Weight
113.5 kg
Certification
UN38.3
Ideal Applications
• Residential solar energy storage• Backup power systems• Off-grid solar installations• Hybrid solar systems
Offers more than 5000 cycles with 80% DOD. Typically 10+ years lifespan, designed to provide remarkable reliability and value for money.
This battery is ideal for most universal Hybrid inverters and ideally suites mostly Victron, Sofar, Deye, and Growat amongst others. Due to it its resilience and robust construction we highly recommend this battery. The scalable design offers ease of installation as it provides for rack mounting systems. Scalability is provided by the fact that you can parallel up to 16 of these batteries. With a DOD of 80%, this battery can with ease handle more than 5000 cycles.
General Data• Model: HP10-Box 5• Nominal Capacity (kWh): 5.12• Depth of Charge: 80%• Usable Capacity (kWh): 4.1• Charge Voltage: 54.0V – 56.4V• Discharge Voltage: 45.0V – 53.0V• Nominal Voltage: 51.2V• Maximum Parallel Units: 16• Charge / Discharge Current: Recommend 50A (0.5C) / Max 100A (1C)• Communication Port: CAN / RS485• Storage -20°C to +35°C• Humidity: 5%-95%• Altitude: ≤ 4000m• Certificate: TUV(IEC 62619)/CE-EMC/UN38.3
Rated Operating Temperature• Charge -5°C to +45°C• Discharge -20°C to +50°C
Recommended Operating Temperature• Charge +15°C to 35°C• Discharge +15°C to +35°C
Compatible Inverters• Growatt, Goodwe, Victron, Deye, Sofar, Luxpower & more
