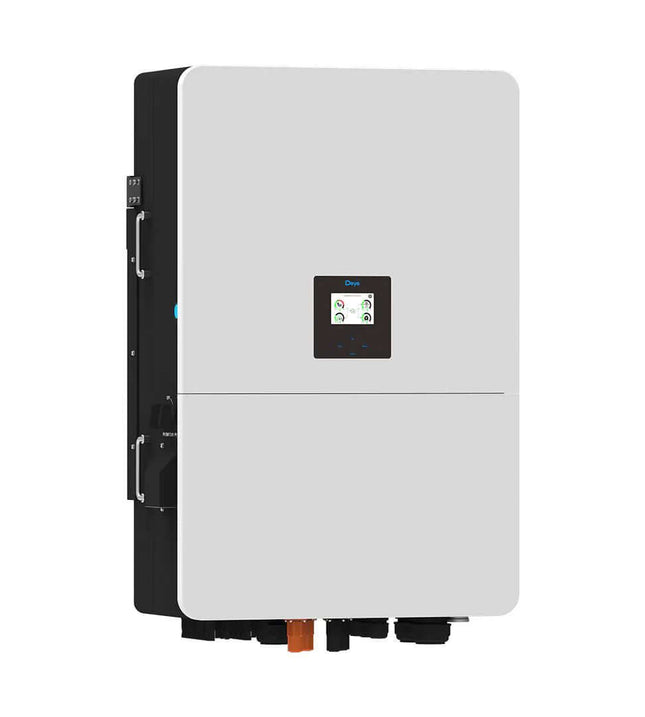

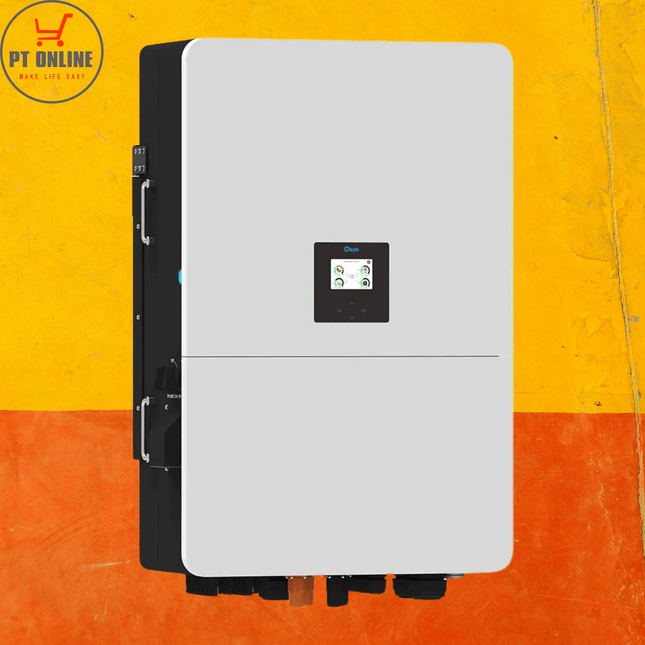

Deye 80kW Three-Phase Hybrid Inverter
Engineered for commercial, agricultural, and industrial-scale energy systems, the Deye 80kW Three-Phase Hybrid Inverter offers robust performance, unmatched scalability, and intelligent grid flexibility. This high-voltage inverter is built to manage large energy loads while maintaining maximum system stability — ideal for demanding off-grid, on-grid, or hybrid applications.
With support for up to 10 units in parallel operation, 160A charge/discharge current, and multiple PV and battery configurations, this system is tailored for businesses, solar farms, and energy contractors looking for reliable, efficient storage and grid interaction.
Key Features
Supports 160,000W PV input for large-scale solar installations
Parallel-ready (up to 10 units) for high-capacity systems
Dual battery ports and AC-coupling for legacy system upgrades
100% unbalanced load support per phase – real-world usability
Multi-mode operation (grid-tied, off-grid, or hybrid)
Advanced grid compliance (IEC, CEI, VDE, NRS, G99, and more)
6 programmable battery charge/discharge periods for smart energy shifting
Technical Specifications
Specification
Details
Model
SUN-80K-SG02HP3-EU-EM6
Max PV Input Power
160,000W
Max AC Output Power
80,000W
Battery Compatibility
High-voltage Lithium-ion
Battery Voltage Range
160V – 1000V
Max Charge/Discharge Current
160A
Parallel Units Supported
Up to 10
No. of MPP Trackers / Strings
6 / 12
Max PV Input Voltage
1000V
MPPT Voltage Range
150V – 850V
AC Output Voltage / Frequency
230/400V (3-phase) / 50/60Hz
Max Efficiency / Euro Efficiency
97.6% / 97.0%
MPPT Efficiency
>99%
Noise Level
≤65 dB
Protection Class
IP65
Cooling
Intelligent Air Cooling
Dimensions (W x H x D)
606 x 927 x 314 mm
Weight
97.5 kg
Communication Ports
RS485 / RS232 / CAN / 4G / LAN
Certifications
IEC, CEI, VDE, G99, NRS, and more
Warranty
5 Years Standard (Extendable to 10)
DATASHEET
