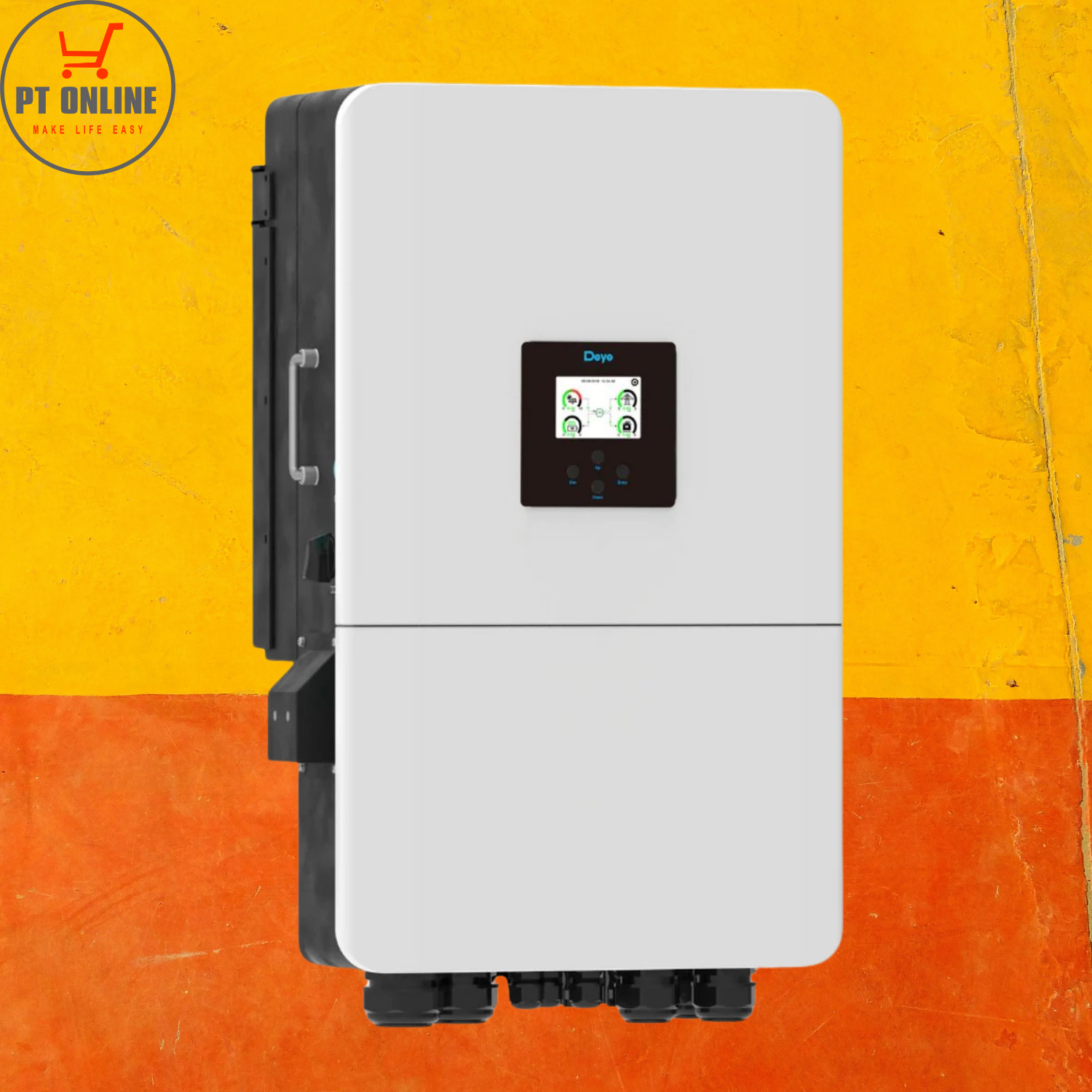

⚡ Deye 15kW Three Phase LV Hybrid Inverter – SUN-15K-SG05LP3-EU-SM2

VOC: 800V | Battery: 48V | CT & WiFi Included

The Deye 15kW Three Phase Low Voltage Hybrid Inverter is a powerful and flexible solution for residential, agricultural, or commercial solar systems. Designed for both on-grid and off-grid applications, this advanced inverter seamlessly integrates solar, battery, and grid power with exceptional efficiency and intelligent energy management.

✅ Key Features:

• High PV Capacity: Supports up to 24,000W of solar input with a max voltage of 800V

• Massive Battery Current Handling: Charge/discharge up to 350A

• Flexible 48V Battery Support: Compatible with lithium-ion or lead-acid batteries

• Smart Load Management: 6 configurable time slots for optimized battery usage

• Full 3-Phase Output: 100% unbalanced load handling – perfect for uneven 3-phase systems

• Parallel Ready: Connect up to 10 units for large-scale installations

• AC Coupling Compatible: Retrofit existing solar systems easily

• Built-in Monitoring: WiFi & CT module included for real-time system tracking

🔒 Advanced Safety & Protection:

• Reverse polarity, overcurrent, short circuit, overvoltage, and thermal protection

• Residual current & arc fault detection

• Type II surge protection (AC & DC sides)

• Certified for global grid codes (IEC, VDE, CEI, NRS, EN, etc.)

📐 Technical Specs:

• Rated Power: 15,000W

• Max PV Input Power: 24,000W

• MPPT Voltage Range: 160–650V

• Max PV Voltage: 800V

• Max Efficiency: 97.6% | MPPT Efficiency: >99%

• IP Rating: IP65 – Weather-resistant for outdoor installations

• Cooling: Intelligent air cooling

• Weight: 51.9kg

• Dimensions: 456 × 750 × 268.5 mm

• Noise Level: <60dB

• Grid Type: 3L + N + PE (Three-phase + Neutral + Earth)

💡 Perfect For:

• Medium to large residential homes

• Farms or agricultural energy systems

• Light commercial or industrial buildings

• Systems requiring high battery throughput and unbalanced 3-phase loads
