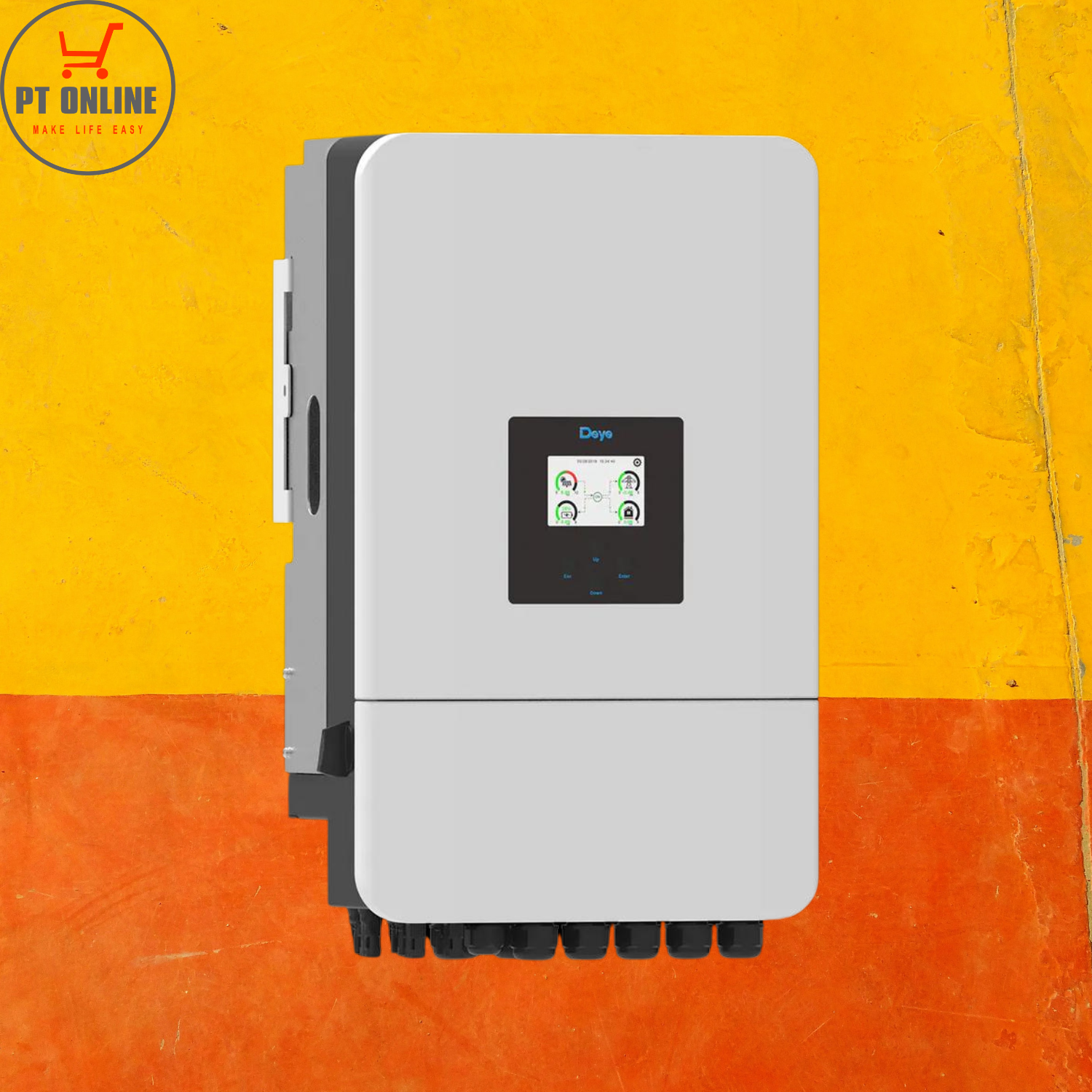

Deye 6kW Single Phase Hybrid Inverter – SUN-6K-SG04LP1-EU-SM2

VOC: 500V | Battery: 48V | CT & WiFi Included

Power your home or small business with confidence using the Deye 6kW Single Phase Hybrid Inverter – a versatile, high-performance inverter designed for both on-grid and off-grid solar systems. This smart hybrid solution integrates seamlessly with lithium or lead-acid batteries and allows for energy storage, self-consumption, and grid backup.

✅ Key Features:

• High PV Input Power: Up to 8,000W with a max PV input voltage of 500V

• Efficient Performance:

  • Max Efficiency: 97.6%

  • Euro Efficiency: 96.5%

  • MPPT Efficiency: >99%

• Flexible Battery Compatibility: Works with 48V lithium or lead-acid batteries

• High Charging/Discharging Current: Up to 140A

• Smart Load Management: 6 configurable time periods for battery charging/discharging

• Parallel Support: Connect up to 16 units for on- or off-grid systems

• AC Coupling Ready: Ideal for retrofitting existing solar systems

• Built-In Monitoring: Includes CT & WiFi module for real-time monitoring via app

• User-Friendly Interface: 4.3" colorful touch LCD with IP65 weatherproof protection

🛡️ Built-In Safety & Protection:

• DC reverse polarity, AC overcurrent, short circuit, overvoltage, ground fault detection

• Type II surge protection (DC & AC sides)

• Compliant with global grid and safety standards (IEC, CEI, VDE, NRS, etc.)

📐 Specifications:

• Rated Power: 6,000W

• Battery Voltage Range: 40–60V

• Max PV Input: 8,000W

• MPPT Voltage Range: 150–425V

• Noise Level: <30dB (natural cooling)

• IP Rating: IP65 – suitable for indoor/outdoor use

• Weight: 19kg

• Size: 376 × 470 × 241.5 mm

🔌 Ideal For:

• Hybrid solar systems with battery storage

• Load shifting, energy independence, and backup power

• Residential or light commercial applications
