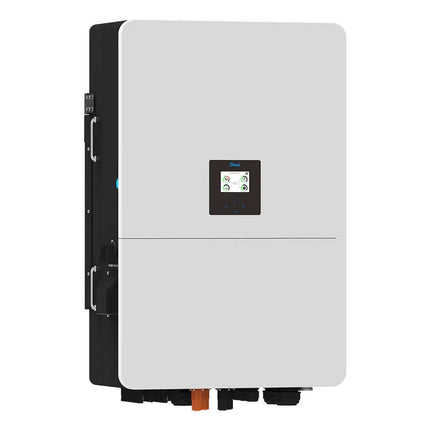

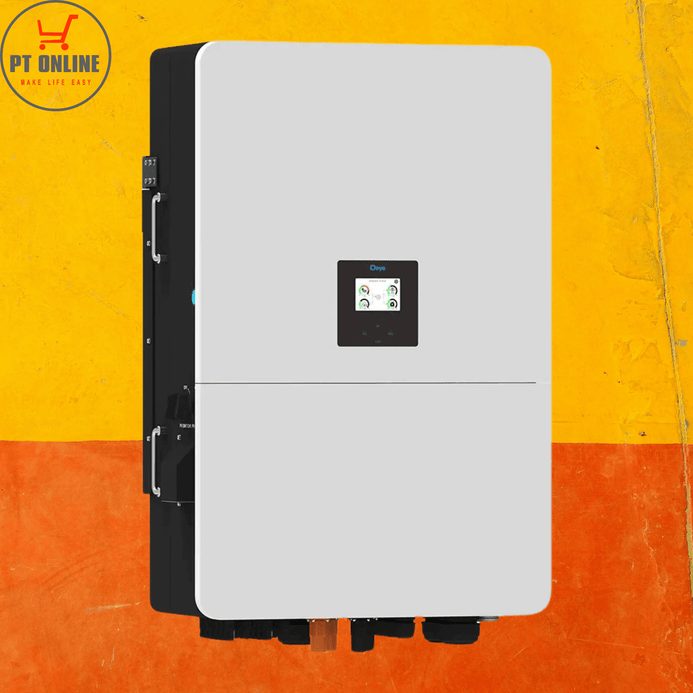

Deye 80kW Three-Phase Hybrid Inverter Engineered for commercial, agricultural, and industrial-scale energy systems, the Deye 80kW Three-Phase Hybrid Inverter... Read more
Free pickup in our shop(s)
R 134,000.00 Incl. VAT
You may be interested in these products
Engineered for commercial, agricultural, and industrial-scale energy systems, the Deye 80kW Three-Phase Hybrid Inverter offers robust performance, unmatched scalability, and intelligent grid flexibility. This high-voltage inverter is built to manage large energy loads while maintaining maximum system stability — ideal for demanding off-grid, on-grid, or hybrid applications.
With support for up to 10 units in parallel operation, 160A charge/discharge current, and multiple PV and battery configurations, this system is tailored for businesses, solar farms, and energy contractors looking for reliable, efficient storage and grid interaction.
| Specification | Details |
|---|---|
| Model | SUN-80K-SG02HP3-EU-EM6 |
| Max PV Input Power | 160,000W |
| Max AC Output Power | 80,000W |
| Battery Compatibility | High-voltage Lithium-ion |
| Battery Voltage Range | 160V – 1000V |
| Max Charge/Discharge Current | 160A |
| Parallel Units Supported | Up to 10 |
| No. of MPP Trackers / Strings | 6 / 12 |
| Max PV Input Voltage | 1000V |
| MPPT Voltage Range | 150V – 850V |
| AC Output Voltage / Frequency | 230/400V (3-phase) / 50/60Hz |
| Max Efficiency / Euro Efficiency | 97.6% / 97.0% |
| MPPT Efficiency | >99% |
| Noise Level | ≤65 dB |
| Protection Class | IP65 |
| Cooling | Intelligent Air Cooling |
| Dimensions (W x H x D) | 606 x 927 x 314 mm |
| Weight | 97.5 kg |
| Communication Ports | RS485 / RS232 / CAN / 4G / LAN |
| Certifications | IEC, CEI, VDE, G99, NRS, and more |
| Warranty | 5 Years Standard (Extendable to 10) |
