Description
General Overview

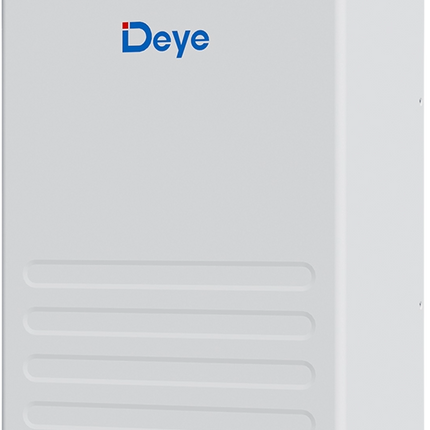

The Deye SE-F16 is a premium 16 kWh low-voltage lithium-ion battery (51.2 V / 314 Ah) built with LiFePO₄ chemistry for safety, long cycle life, and high performance. It integrates with compatible hybrid inverters via CAN and RS485 communication and supports Bluetooth App monitoring.
Key Features
- 16 kWh energy storage with 314 Ah nominal capacity
- Up to 32 units in parallel for large-scale systems
- ≥ 6000 cycles (25 °C, 70% EOL)
- High continuous discharge current: 230 A (peak 280 A for 10 s)
- Built-in Battery Management System (BMS) with active fuse
- Monitoring via Bluetooth App, CAN 2.0, and RS485
- Flexible installation: wall, floor, or stack mount
- Natural cooling, maintenance-free
Specifications
| Model | Deye SE-F16 |
| Chemistry | LiFePO₄ |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8–57.6 V |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 16 kWh |
| Recommended DoD | 90% |
| Cycle Life | ≥ 6000 cycles |
| Max Charge Current | 160 A (peak 280 A for 10 s) |
| Max Discharge Current | 230 A (peak 280 A for 10 s) |
| Scalability | Up to 32 units in parallel (64 with CAN-Box) |
| Enclosure Rating | IP21 (indoor) |
| Working Temperature | Charge 0–55 °C / Discharge −20–55 °C |
| Storage Temperature | 0–35 °C |
| Dimensions (W×H×D) | 400 × 708 × 233 mm (without bracket) |
| Weight | 109 kg |
| Communication | CAN 2.0 / RS485 / Bluetooth / App |
| Certifications | UN38.3, MSDS, CE, CB |
Compatibility
Compatible with Deye low-voltage hybrid inverters and other brands via CAN or RS485.
Package Contents
- SE-F16 Battery Module
- User Manual
- Communication Cable (1000 mm)
- Ground Cable (1000 mm)
- Positive & Negative Power Cables (1 AWG 1000 mm)
- Mounting Hooks + Expansion Bolts
- Optional: Wheels for floor installation
Safety
Install by qualified personnel only. Do not connect directly to AC or PV panels. Use with compatible hybrid inverters in lithium mode. Keep away from water and open flames.
