General Data

• A-Grade brand-new prismatic LiFePO4 cells
• Cell balance function & built-in fire suppression module
• Metal case for excellent heat dissipation and improved safety
• Multiple integrated safety features
• Maximum 8 battery packs can be connected in parallel

Key Specs

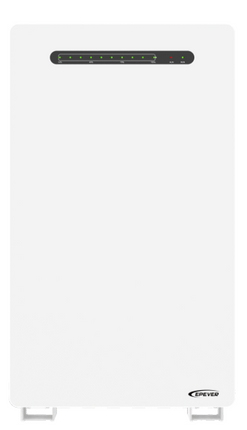

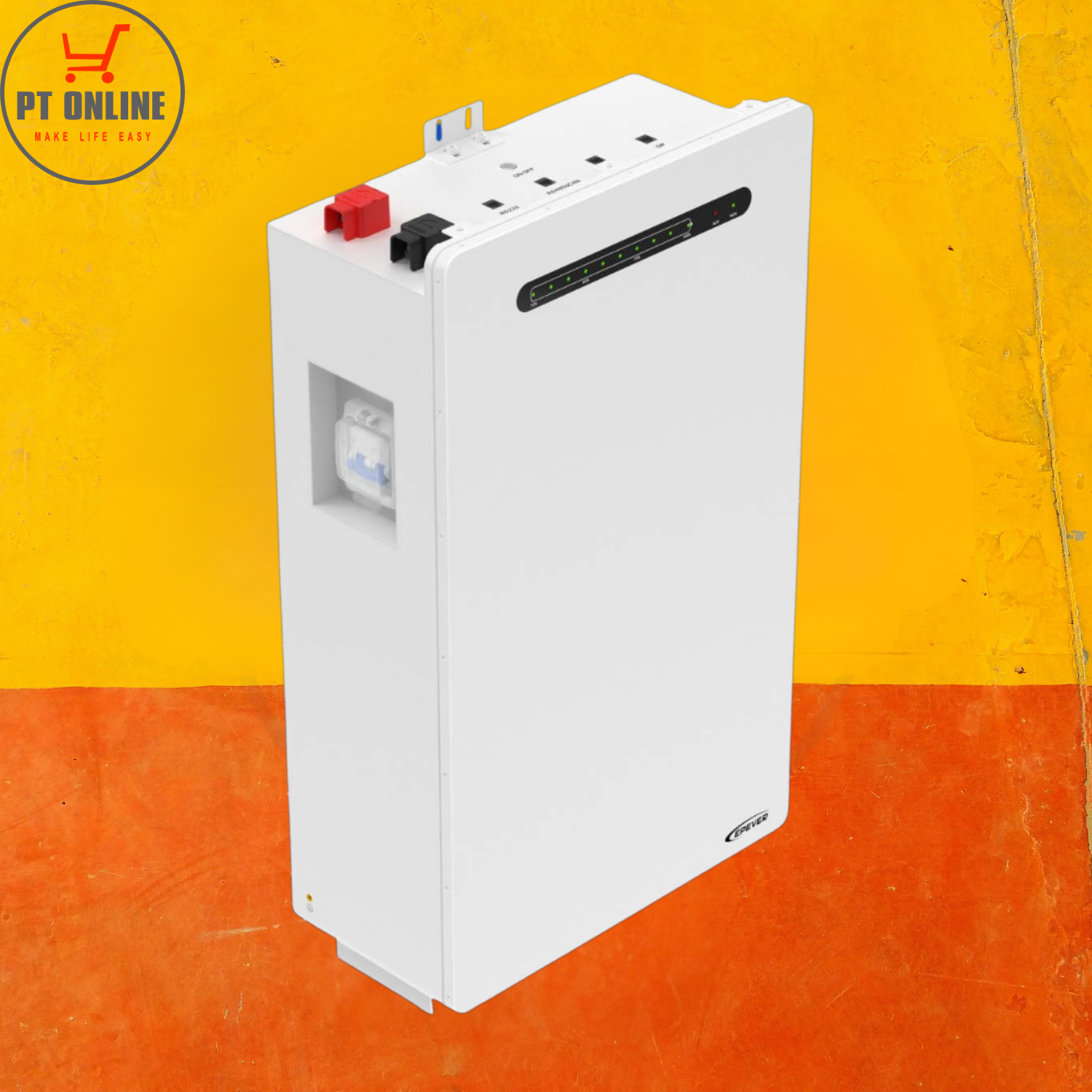

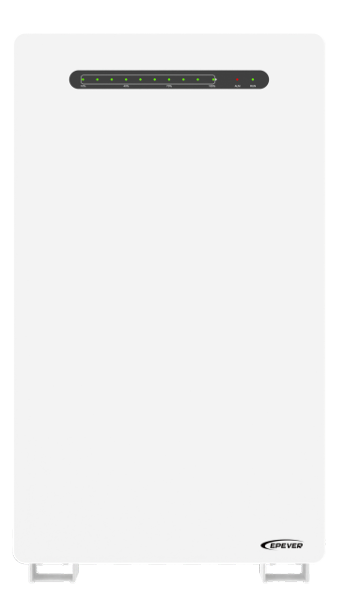

• Model: LF51314E
• Nominal Voltage: 51.2V
• Nominal Capacity: 314Ah
• Energy: 16076Wh (~16.1kWh)
• Continuous Discharge Current: 100A
• Max Charge Current: 100A
• Max Discharge Current: 200A
• Charge Cut-off Voltage: 57.6V
• Discharge Cut-off Voltage: 41.6V
• Recommended Depth of Discharge: 80%
• Cycle Life: >8000 cycles @80% DOD (25°C, 0.5C)
• Communication: RS485 / RS232 / CAN
• Protections: overcharge, over-discharge, over/low temperature, over-current, short circuit
• Certifications: UN38.3, MSDS, IEC62619
