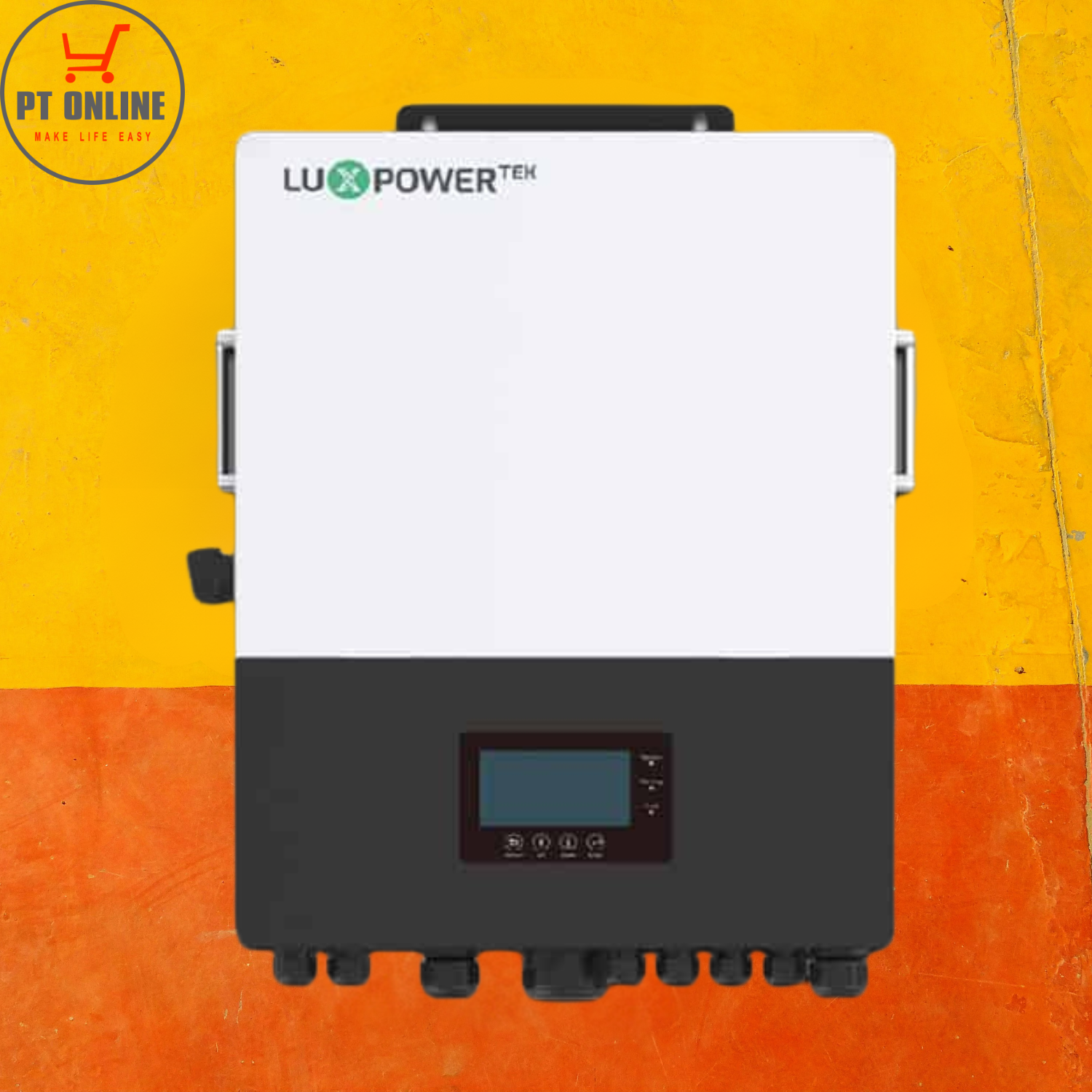

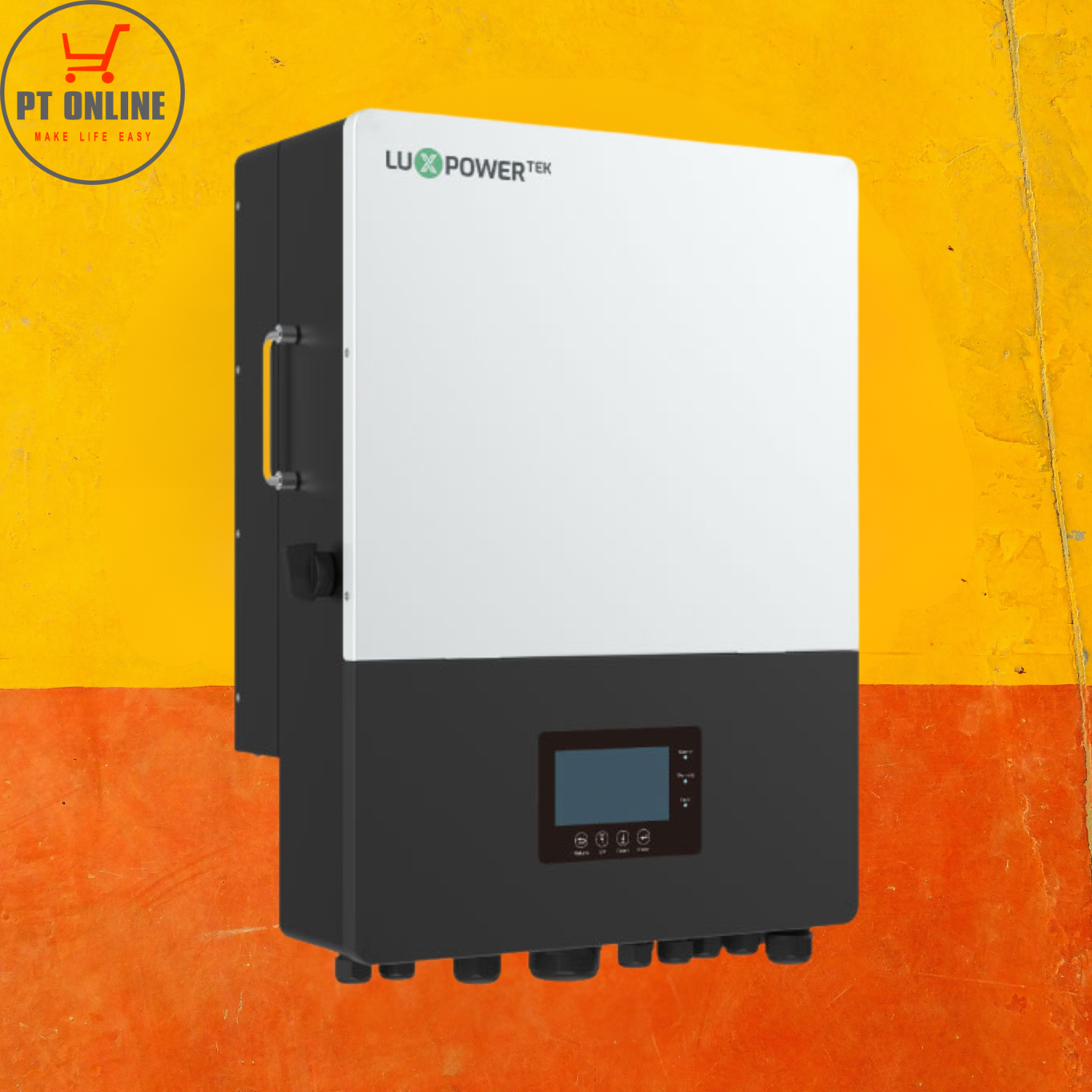

Luxpower 12kW Hybrid Single Phase Inverter (LXP-LB-EU 12K)

Product Description

The Luxpower 12kW Hybrid Single Phase Inverter LXP is a powerful, flexible, and reliable solution designed for residential and commercial solar energy systems. Built with advanced hybrid technology, this single-phase inverter combines solar PV, battery storage, and grid power to deliver uninterrupted energy and maximum efficiency.

With its high PV input capacity of up to 18kW, the Luxpower 12kW Hybrid Single Phase Inverter LXP supports 3 MPPT trackers, ensuring optimal solar harvesting even in challenging conditions. The inverter operates seamlessly in on-grid, off-grid, and backup applications, making it suitable for diverse energy needs.

Its 12kW UPS-rated output provides reliable backup during load-shedding or grid outages, while the integrated generator interface ensures compatibility with additional power sources. The inverter’s AC coupling function allows easy integration with existing solar systems, while its parallel capability (up to 10 units) enables scalability up to 120kW.

Equipped with a 250A charge/discharge current, it supports both Lithium-ion and Lead-Acid batteries with a 48V system, offering fast charging and discharging for improved energy independence. The unit is IP65-rated for outdoor durability and comes with a touchscreen LCD for user-friendly operation and remote monitoring via Wi-Fi, RS485, or CAN.

Whether for residential backup, small business operations, or larger energy projects, the Luxpower 12kW Hybrid Single Phase Inverter LXP ensures efficiency, flexibility, and reliability, delivering true energy freedom.

Key Features

• 12kW single-phase hybrid inverter with seamless UPS backup
• Supports up to 18kW PV input with 3 MPPTs for maximum efficiency
• 250A charge/discharge current for fast battery cycling
• Compatible with Lithium-ion and Lead-Acid 48V batteries
• AC coupling support for easy integration with existing solar systems
• Parallel capability – connect up to 10 units for 120kW total output
• Smart load control and generator interface included
• Touchscreen LCD display with Wi-Fi/RS485/CAN monitoring
• High efficiency: 99% MPPT efficiency, 97.5% EU efficiency
• Durable outdoor design – IP65 rated, fan cooling system
• Rapid shutdown compliant with NEC safety standards

Technical Specifications

• Max PV Input Power: 18,000W
• MPPT Voltage Range: 120–480V
• Max PV Input Current: 25A / 15A / 15A (3 MPPTs)
• Battery Voltage: 48V (40–60V range)
• Max Charge/Discharge Current: 250A
• UPS Output: 12kW / 11.5kW rated
• AC Voltage/Frequency: 230V, 50/60Hz
• Switching Time: <20ms (seamless backup)
• Surge Power: 2Pn, 0.5s
• Dimensions: 490 × 670 × 265 mm
• Weight: 50kg
• Protection: Overcurrent, anti-islanding, short-circuit, leakage, surge, grid monitoring
• Warranty: 5 years
