MC4 Connector Male & Female
R 23.00
You Save: (%)

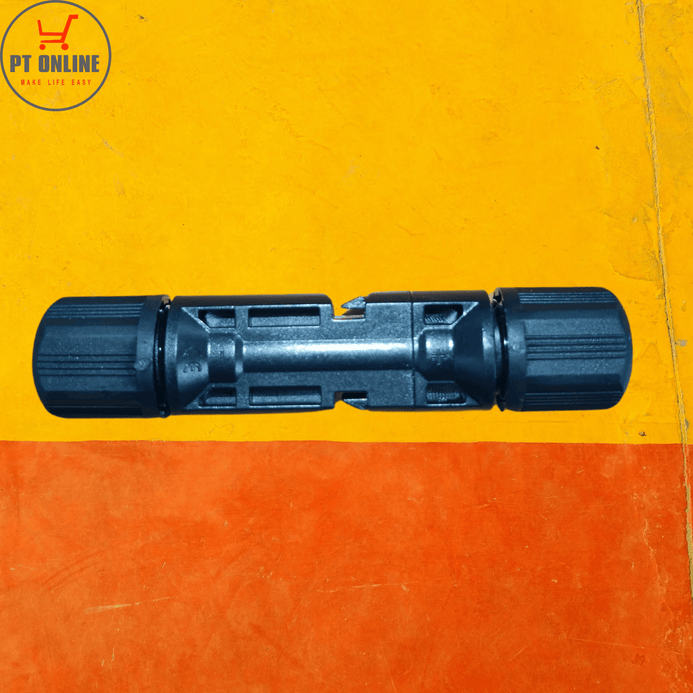

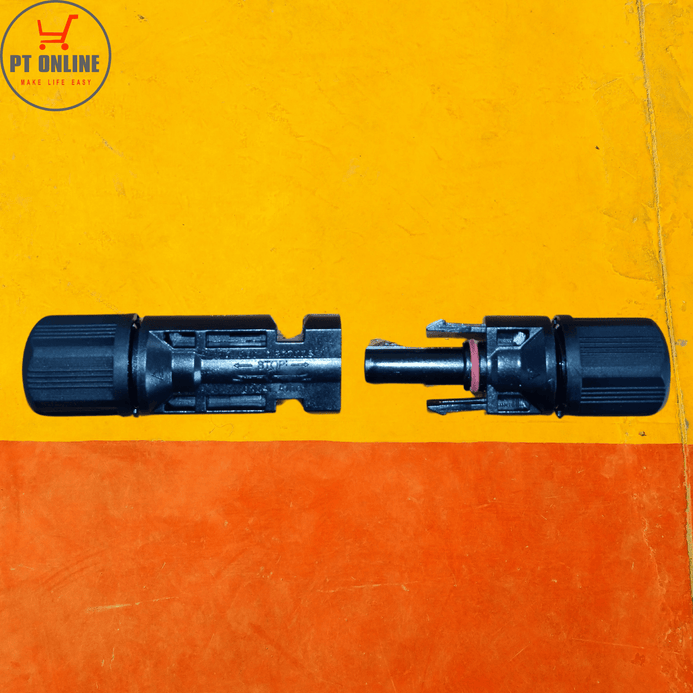

A pack of 1x Male and 1x Female cable couplers
(including insulating part)
- Snap-in lock
- Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
- Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
- Tried and tested plug connectors, 14 years of experience in the field
- Suitable for assembly with cross-sections of 4 and 6 mm²
Rated current: 39 A (for 4 and 6mm2 cable)
Rated voltage: 1000 V IP Rating: IP65 / IP68 when mated (1h / 1min) Cross section: 4 - 6 mm² Outer diameter cable (dA): 5,5 - 9 mm
Please use correct MC4 approved tools to crimp these connectors on to bare cables.
DATASHEET
