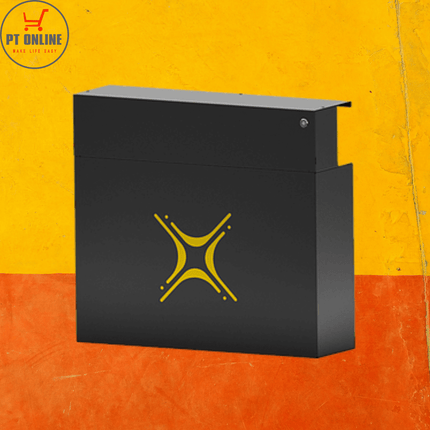

Solar MD 16kWh Lithium Battery 51.2V - 157ah
R 49,000.00
You Save: (%)
🔋 Solar MD SS4160 - 16 kWh Advanced LiFePO4 Battery
Key Specifications:
| Parameter | Value |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Rated Capacity | 16.0 kWh |
| Nominal Voltage | 51.2 V |
| Voltage Range | 44.8 – 55.6 VDC |
| Nominal Power @ 0.5C | 8.0 kW |
| Max Charge & Discharge Current | 157 A |
| Cycle Life @ 25°C | ≥ 7000 cycles |
| Charging Efficiency | 99% |
| Operating Temperature | 0°C to 50°C |
| Weight | 118 kg |
| Dimensions (W x D x H) | 674 mm x 187 mm x 606 mm |
| Storage Duration | 6 months @ 25°C |
Certifications & Compliance:
-
CE / EN 55016 / IEC 61000
-
IEC 62619 / UN38.3 / UN3480
-
UL 1642 / UL 1973
Features:
-
Modular design (parallel scalable)
-
Wall or floor mounted
-
High energy density
-
Long life cycle
-
Stable discharge
-
High charge/discharge rate
-
Built-in Battery Management System (BMS)
-
CANBUS & RS485 Communication
Compatible with:
-
Deye
-
McRockage
-
Sunsynk
-
Sungrow
-
Goodwe
-
Sermatec
-
Huawei
BMS Functions:
-
Cell balancing
-
Overcharge/discharge protection
-
Temperature monitoring
-
SOC calculation & control
-
Data logging & storage
-
Communication via CANBUS, RS485
EMS Integration (mypower24 platform):
-
Real-time data & insights
-
Remote management
-
Secure communication
-
Integrated with Logger V2
