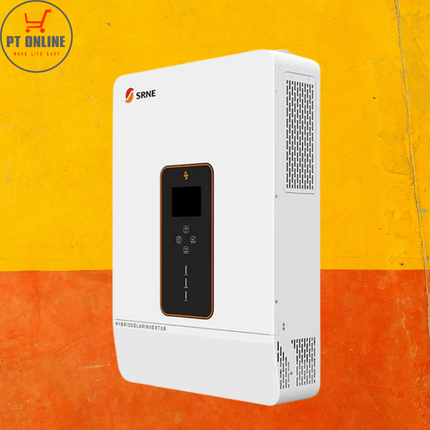

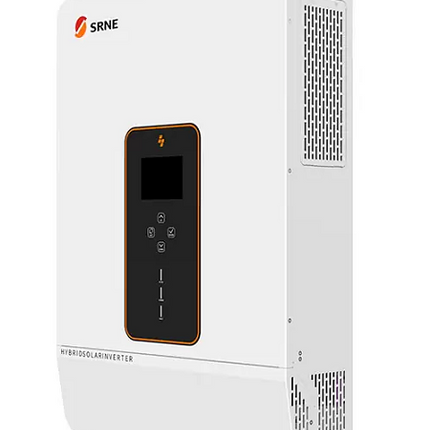

SRNE 10kW Off-Grid Inverter.
The SRNE 10kW Off-Grid Inverter is a powerful and efficient solution for powering your home or business independently of the grid. It’s designed to convert DC power from solar panels into usable AC power.

Key Features

• Battery Compatibility: Supports a wide range of battery types.
• Pure Sine Wave Output: Delivers clean, stable AC power.
• High Power Output: Rated output of 10,000W and a peak power of 20,000W.
• Protection Features: Equipped with overvoltage, undervoltage, overload, and short-circuit protection.
• Remote Monitoring: Wi-Fi modules for real-time monitoring of your system’s performance

Specifications:

• Inverter Output:
• Rated Output Power: 10,000W
• Max.Peak Power: 20,000W
• Rated Output Voltage: 230Vac（single-phase L/N/PE ）
• Switch Time: 10ms（typical）
• Battery:

• Battery Type: Li-ion / Lead-Acid / User Defined
• Rated Battery Voltage: 48Vdc
• Voltage Range: 40～60Vdc
• Max.MPPT Charging Current: 200A
• Max.Mains/Generator Charging Current: 120A
• Max.Hybrid Charging Current: 200A
• PV Input
• Num. of MPP Trackers: 2
• Max.PV array power: 5,500W + 5,500W
• Max.input current: 22A + 22A
• Max.Voltage of Open Circuit: 500Vdc + 500Vdc
• MPPT Voltage Range: 125～425Vdc
• General

• Dimensions: 620*445*130mm
• Weight: 27kg
• Noise: <60dB
• Cooling Method: Internal Fan
• Warranty: 2 Years
