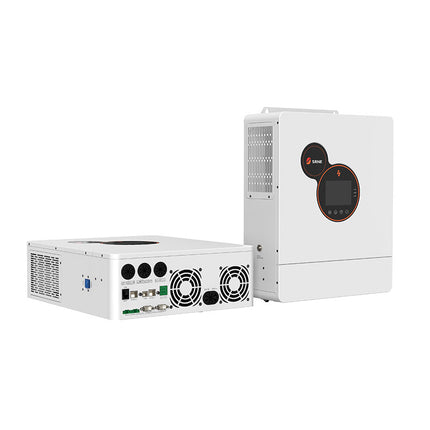

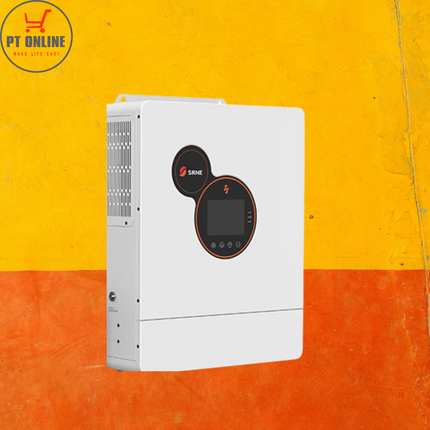

Discover the power of the SRNE 5Kw Off Grid inverter – robust, efficient, and perfect for home use. Designed by SRNE Solar, this cutting-edge inverter features Rated Power of 5,000W and a Max. Peak Power of 10,000VA. Moreover, its single MPP tracker ensures seamless solar energy management. Furthermore, this inverter is compatible with both Li-ion and Lead-acid batteries, offering flexibility for various energy storage setups.

• In spite of its impressive capabilities, the SRNE 5Kw Off Grid Inverter remains easy to use and, most importantly, safe for your home. In addition, it’s designed to deliver consistent power output throughout its lifetime.
  For those seeking even greater power capacity, consider the SRNE 10Kw Off Grid Inverter. Alternatively, the Luxpower 5Kw Off Grid Inverter is another excellent choice that presents similar features.

Model: HYP4850S100-H.
Manufacturer: SRNE Solar.

INVERTER OUTPUT

• Rated Power: 5,000W.
• Max. Peak Power: 10,000VA.
• Rated Output Voltage: 230Vac (L/N/PE single-phase).
• Load Capacity of Motors: 4HP.
• Rated AC Frequency: 50/60Hz.
• Waveform: Pure sine wave.
• Switch Time: 10ms (typical).
• Parallel Capacity: 1-6 units (single/three phase).

BATTERY

• Battery Type: Li-ion / Lead-acid and user-define.
• Rated Battery Voltage: 48Vdc.
• Voltage Range: 40-60Vdc.
• MPPT Charging Current: 100A.
• Mains/Generator Charging Current: 60A.
• Hybrid Charging Current: 100A.

PV INPUT

• Num. of MPP Trackers: 1.
• Max. PV array power: 5,500W.
• Input current: 22A.
• Voltage of Open Circuit: 500Vdc.
• MPPT Voltage Range: 120-450Vdc.

GENERAL

• Dimensions: 446.9*350*133 mm.
• Weight: 13kg.
• Noise: <60dB.
• Warranty: 2 years.

COMMUNICATION.

• Embedded Interfaces RS485/CAN/USB/dry contact.
• External Modules (Optional) Wi-Fi/GPRS.
