Sunsynk have produced a perfect storage solution. The module consists of Lithium ferro phosphate rechargeable batteries with 5.12kWh capacity rated... Read more
Free pickup in our shop(s)
R 25,200.00 Incl. VAT
You may be interested in these products

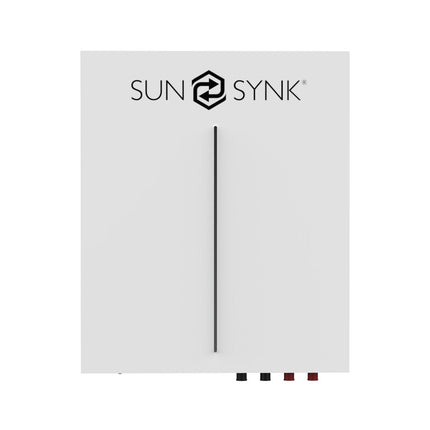

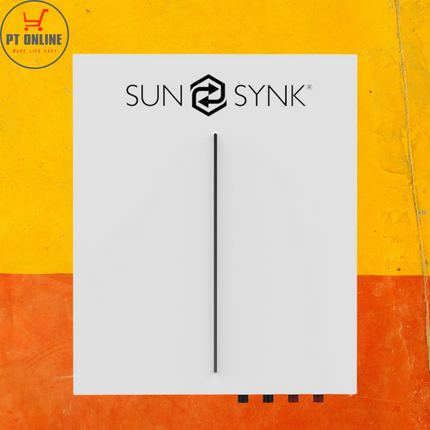

Sunsynk have produced a perfect storage solution. The module consists of Lithium ferro phosphate rechargeable batteries with 5.12kWh capacity rated at 51.2V 100Ah with a built-in battery management system.
The battery can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25°C).
Lithium ferro phosphate batteries provide excellent thermal stability and storage. The module also incorporates a self-monitoring function for the detection of any abnormalities in power storage.
Cell Type - Lithium Ferro Phosphate (LifePO4 or LFP)
Nominal Operating Voltage - 51.2V
Nominal Capacity - 100Ah / 5.12kWh
Depth of Discharge (DoD) - 100%
Usable Capacity - 5.12kWh
Packing - 1P16S
IP Rating - IP40
Minimum Operating Voltage - 44.8V
Maximum Operating Voltage - 57.6V
Standard Charging Current - 50A
Max. Continuous Charging Current - 50A
Standard Discharging Current - 50A
Max. Continuous Discharging Current - 100A (1C, 25°C ± 2°C)
Max. Pulse Discharging Current - 200A (2C, 30S, 25°C ± 2°C SOC≥40%)
Standard Charging Method - 0.5C CC to 57.6V, CV at 57.6V till current is 0.05C
Min. Operating Temperature (no derating) - Charging: 0°C / Discharging: -20°C
Max. Operating Temperature (no derating) - Charging: 50°C / Discharging: 55°C
Operating ROH - 20% ~ 80%
Storage Temperature - -20 ~ 50°C
Self-discharging rate - ≤5% (25°C 50% SoC)
SoC @ end of product line - 40%
Insulation Resistance - >100MΩ
Voltage Difference in each module - ≤20mV
Inner Resistance of single Cell - 0.34 ± 0.05mΩ (fresh cell 30 ~ 40% SoC)
Altitude Below - 2000m
Weight - 48kg
Dimensions - 440 x 530 x 132mm (not include connector, MSD and other parts)
Expected Life @ 25°C - Greater than 10 years if used as per warranty terms
