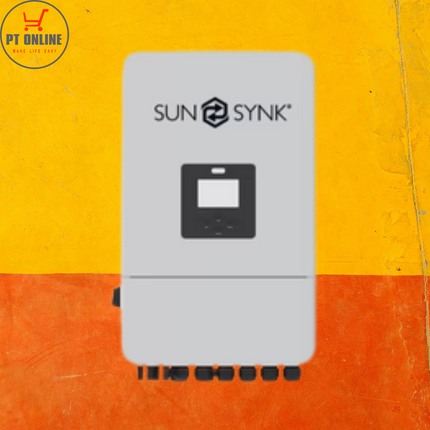

Sunsynk 8kW Hybrid Inverter (New Gen)

Sunsynk 8kW Hybrid Inverter (New Gen)

Product form

The inverter has excellent efficiency and performs above 97%. It is easy to install and has a clear touch screen... Read more

Free pickup in our shop(s)

3 in stock Fast delivery

R 24,500.00 Incl. VAT

You may be interested in these products

    • Fast shipping

    Description

    The inverter has excellent efficiency and performs above 97%.

    It is easy to install and has a clear touch screen where you can programme and read the system status. Added to the inverter is a Wi-FI port to allow the user to monitor the inverter via the internet.



    Main Features


    • 120V/240V split phase, 230V single phase
    • Self consumption and feed-in to the grid options
    • Auto re-start while AC is recovering
    • Programmable
    • Compatible to mains voltage or generator power
    • Overload / temperature / short circuit protection
    • Supports Wi-Fi monitoring
    • 3-Stage MPPT charging for optimal battery performance
    • Timing adjustable for convenient and efficient operation
    • On-grid, off-grid or uninterrupted power supply (UPS)



    • Inputs:
      • PV solar
      • AC grid power
      • Batteries
      • Generator
    • Output voltage – 230V AC
    • Continuous power – 8000W
    • Start-up power – 16000W
    • Backup power – 8000W
    • DC – 48V
    • Battery charger – 190A
    • Transfer time <= 10ms
    • Battery charger adjustable for battery bank size and type
      • Can charge Lead Acid and Li-ion batteries
      • Li-ion battery charging self-adapts to BMS
    • Solar Input
      • Max power input – 8800W
      • Max V DC input – 500V DC
      • Max current input – 18A + 18A
      • MPPTs – 2
    • Multi-core processor design and advanced MPPT control
    • High reliability and response speed
    • Multiple operating modes:
      • Battery only
      • Grid-tie only
      • Hybrid
      • Off-grid
    • Additional features
      • AC couple
      • 6 stages time of use settings
      • IP65
    • Protections
      • PV input lightning protection
      • Anti-islanding
      • Insulation resistance detection
      • Residual current
      • Output short circuit
      • Output overvoltage
      • Arc detection
    • Certifications
      • NRS 097-2-1:2017, Edition 2
      • Grid Regulation: UL1741, IEEE1547, VDE-ARN4105
      • Safety Regulation: IEC62109-1&2, IEC62040-1
      • EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B



    DATASHEET



    INSTALLATION MANUAL



    WARRANTY

    Specifications

    • Max Load: Max Load
    • Usage: Indoor & outdoor
