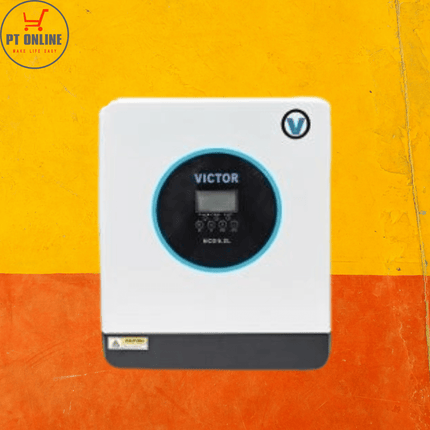

Victor 6.2KW ECO Off Grid Inverter
Victor 6.2KW 48V Solar Inverter
This advanced 6.2KW off-grid inverter is packed with smart features for efficient solar power management. It's designed for high-performance home or office use and is compatible with lithium batteries.
⚙️ Key Features:
-
✅ Pure sine wave inverter
-
✅ 6.2KW / 48VDC / 220-230V AC output
-
✅ Built-in 120A MPPT solar charger
-
✅ MPPT range: 60V – 500V DC
-
✅ WiFi monitoring (optional)
-
✅ Compatible with LiFePO₄ batteries via RS485
-
✅ Battery-less operation supported
-
✅ Lithium battery activation by PV or utility
-
✅ Dust cover for harsh environments
-
✅ EQ function for longer battery life
-
✅ Power factor 1.0
-
✅ Surge power: 12400VA
-
✅ 95% PV-to-Inverter peak efficiency
🔌 Technical Specs:
| Category | Specification |
|---|---|
| Rated Power | 6.2KW (6.2KVA) |
| Surge Power | 12400VA |
| Battery Voltage | 48VDC |
| Max PV Input Power | 6500W |
| MPPT Voltage Range | 60V – 500V |
| Max PV Open Circuit Voltage | 500VDC |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 80A |
| Max Combined Charge (PV+AC) | 120A |
| Communication | RS485 / RS232 |
| Dimensions (mm) | 454 × 354 × 128 |
| Weight | 9.55 kg |
| Ingress Protection | IP21 |
| Operating Temp | -10°C to 55°C |
📱 Remote Monitoring Support
Optional WiFi module for real-time tracking via Android / iOS App.
📦 What’s in the Box?
-
1x 6.2KW Victor Inverter
-
User Manual
-
Communication Cables
-
Optional WiFi dongle (sold separately)
