mprove self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT design, Max. efficiency of 97.6%.
User-friendly.
LCD Touch screen and buttons, easy operation.
Compatible with lithium-ion battery and lead acid battery.
Web browser and mobile App monitoring supported.
Reliable.
PV lighting protection, Anti-islanding protection, Leakage current protection etc.
Support store energy from DG when needed, ensure the system working within 7*24H.
IP65 protection degree, adapt to indoor and outdoor using.
Automatically switch from on-grid to off-grid mode within 5ms.
Zero exporting function, fast reaction within 200ms in zero export mode.
Smart.
Programmable charging and discharging schedule.
Both wind turbines and solar panels can be connected as DC input power.
Max. 16 units can be paralleled for higher system power.
Retrofitting of existing solar system to energy storage system.
Features:
100% unbalanced output, each phase Max. output up to 50% rated power.
48V low voltage battery, transformer isolation design.
6 time periods for battery charging/discharging.
Max. charging/discharging current of 240A.
Frequency droop control.
DC couple and AC couple to retrofit existing solar system.
Support storing energy from diesel generator
Battery Input Data
Battery Type: Lead-acid or Li-lon
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 240A
Max. Discharging Current (A): 240A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy for Lithium Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15600W.
PV input Voltage (V): 550V (150V-800V).
MPPT Range (V): 200-650V.
Start-up Voltage (V): 160V.
PV Input Current (A): 25A + 125.5A.
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 2+1.
AC Output Data
Rated AC Output and UPS Power (W): 12000W
Max AC Output Power (W): 13200W
Peak Power(off-grid): 2 times of rated power, 10 S.
AC Output Rated Current(A): 18A
Max.AC Current(A): 27A
Max Continuous AC Pass-through(A): 50A.
Output Frequency and Voltage: 50/60Hz; 230/400Vac (Three Phase)
Grid Type: Three Phase
Current Harmonic Distortion: THD<3% (Linear load<1.5%).
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.00%
MPPT Efficiency: 99.90%
Protection
PV Arc Fault Detection: Integrated (Except European Type)
PV Input Lightning Protection: Integrated
Anti-islanding Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
Insulation Resistor Detection: Integrated
Residual Current Monitoring Unit: Integrated
Output over Current Protection: Integrated
Output Shorted Protection: Integrated
Output over Voltage Protection: Integrated

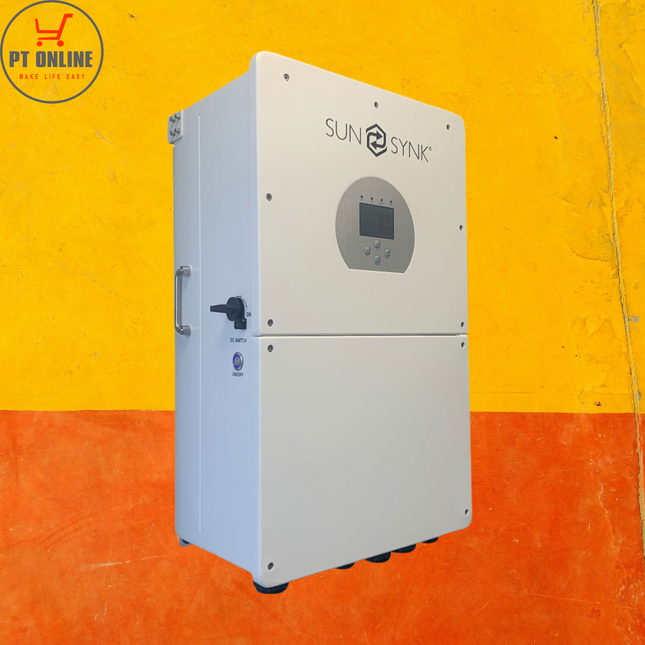

We have taken the Sunsynk Hybrid Inverter to the highest level. Our new Sunsynk MAX is the most powerful low-voltage inverter in the world, achieving a maxium output power of 16kW and battery charge current of 275A.This power management tool allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.
INTERACTIVE
Supporting Wi-Fi or GSM monitoring
Visual power flow screen
Parallel / multi invert function grid-tied and off-grid
COMPATIBLE
Compatible with main electrical grid voltages or power generators
Self-consumption and feed-in to the grid
Auto restart while AC is recovering
Auto earth bond feature (Via a relay)
CONFIGURABLE
Fully programmable controller
Programmable supply priority for battery or grid
Programmable multiple operation modes: on-grid/off-grid & UPS
Configurable battery charging - current/voltage based on the application
Configurable AC / solar / generator charger priority by LCD setting
SECURE
Overload/over-temperature/short-circuit protection
Smart battery charger design for optimized battery protection
Limiting function installed to prevent excess power overflow to grid
Sunsynk have produced a perfect storage solution. The module consists of Lithium ferro phosphate rechargeable batteries with 5.12kWh capacity rated at 51.2V 100Ah with a built-in battery management system.
The battery can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25°C).Lithium ferro phosphate batteries provide excellent thermal stability and storage. The module also incorporates a self-monitoring function for the detection of any abnormalities in power storage.
Cell Type - Lithium Ferro Phosphate (LifePO4 or LFP)
Nominal Operating Voltage - 51.2V
Nominal Capacity - 100Ah / 5.12kWh
Depth of Discharge (DoD) - 100%
Usable Capacity - 5.12kWh
Packing - 1P16S
IP Rating - IP40
Minimum Operating Voltage - 44.8V
Maximum Operating Voltage - 57.6V
Standard Charging Current - 50A
Max. Continuous Charging Current - 50A
Standard Discharging Current - 50A
Max. Continuous Discharging Current - 100A (1C, 25°C ± 2°C)
Max. Pulse Discharging Current - 200A (2C, 30S, 25°C ± 2°C SOC≥40%)
Standard Charging Method - 0.5C CC to 57.6V, CV at 57.6V till current is 0.05C
Min. Operating Temperature (no derating) - Charging: 0°C / Discharging: -20°C
Max. Operating Temperature (no derating) - Charging: 50°C / Discharging: 55°C
Operating ROH - 20% ~ 80%
Storage Temperature - -20 ~ 50°C
Self-discharging rate - ≤5% (25°C 50% SoC)
SoC @ end of product line - 40%
Insulation Resistance - >100MΩ
Voltage Difference in each module - ≤20mV
Inner Resistance of single Cell - 0.34 ± 0.05mΩ (fresh cell 30 ~ 40% SoC)
Altitude Below - 2000m
Weight - 48kg
Dimensions - 440 x 530 x 132mm (not include connector, MSD and other parts)
Expected Life @ 25°C - Greater than 10 years if used as per warranty terms
DATASHEET
This is a mid-range Hybrid Inverter that carries the same features as the larger inverters. The size is aimed at larger marine vessels and domestic premises with sufficient roof space for solar or wind power. Ideal for solar arrays ranging from 2.5kW to 4.8kW. It carries a weatherproofing rating of IP65 and is fitted with 2 x MPPT ports.
• Maximum efficiency of 97.5% with wide input range
• Double MPPT design with precise MPPT algorithm
• Natural cooling- IP65 protection
• Compact and light design for easy installation
• Transformer-less GT technology
• RS485 Wi-Fi interface
• Built-in protection features
• Built-in anti-overflow function
• 25 Years lifespan
• 5 Year Warranty
Sunsynk Datasheet
Sunsynk User Manual
Sunsynk Installer Manual
Sunsynk Warranty
The inverter has excellent efficiency and performs above 97%.
It is easy to install and has a clear touch screen where you can programme and read the system status. Added to the inverter is a Wi-FI port to allow the user to monitor the inverter via the internet.
Main Features
• 120V/240V split phase, 230V single phase• Self consumption and feed-in to the grid options• Auto re-start while AC is recovering• Programmable• Compatible to mains voltage or generator power• Overload / temperature / short circuit protection• Supports Wi-Fi monitoring• 3-Stage MPPT charging for optimal battery performance• Timing adjustable for convenient and efficient operation• On-grid, off-grid or uninterrupted power supply (UPS)
Inputs:
PV solar
AC grid power
Batteries
Generator
Output voltage – 230V AC
Continuous power – 8000W
Start-up power – 16000W
Backup power – 8000W
DC – 48V
Battery charger – 190A
Transfer time <= 10ms
Battery charger adjustable for battery bank size and type
Can charge Lead Acid and Li-ion batteries
Li-ion battery charging self-adapts to BMS
Solar Input
Max power input – 8800W
Max V DC input – 500V DC
Max current input – 18A + 18A
MPPTs – 2
Multi-core processor design and advanced MPPT control
High reliability and response speed
Multiple operating modes:
Battery only
Grid-tie only
Hybrid
Off-grid
Additional features
AC couple
6 stages time of use settings
IP65
Protections
PV input lightning protection
Anti-islanding
Insulation resistance detection
Residual current
Output short circuit
Output overvoltage
Arc detection
Certifications
NRS 097-2-1:2017, Edition 2
Grid Regulation: UL1741, IEEE1547, VDE-ARN4105
Safety Regulation: IEC62109-1&2, IEC62040-1
EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
DATASHEET
INSTALLATION MANUAL
WARRANTY

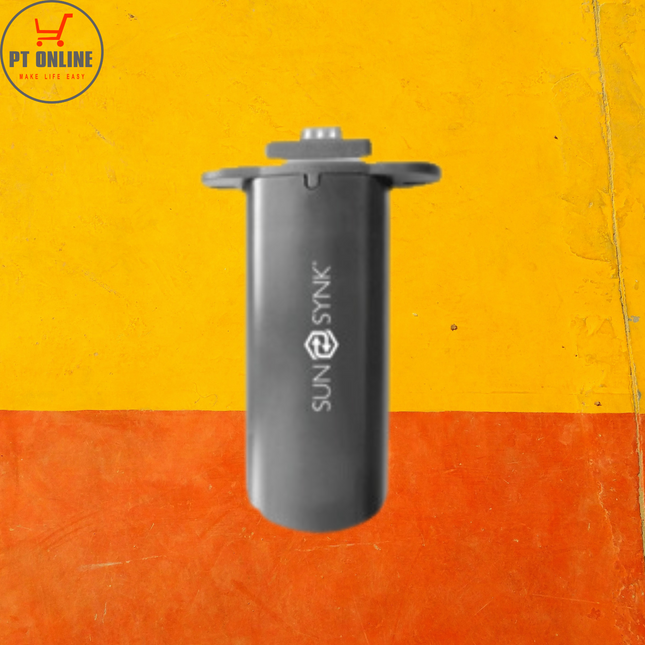

New Sunsynk Data Logger
Has Wi-Fi compatibility
Allows for remote monitoring
All inverter settings can be configured directly from the App
The logger is only compatible with the new platform, new sunsynk application (see link below)
Please note this is not compatible with the Solarman App
Does not come with the RJ45 port
The data logger is included in the packaging for all new Sunsynk inverters.
• Advanced BMS with current limiting function
• CAN Bus, fully integrates and communicates with leading Inverter brands
• Excellent high temperature performance
• High Cycle Life and Service Life
• 1C High Performance Lithium battery
• High Energy Density and conversion efficiency
• Complete with integrated Battery Management System
• Compatible with most Inverters and chargers
• Low self discharge
• Easy wall mount or shelf rack installation
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
SPECIFICATIONS:
Series
Lithium battery
Model and Capacity
25.9V100Ah
Total power consumption
2.59KWh
Rated Capacity
Typical:100Ah
internal Impedance
≤ 10mohm
Nominal Voltage
25.9V
Charging Voltage
29.2V
Standard discharge time
100Ah
Max.Continuous Discharge
100A
Current
Discharge Cut-Off Voltage
20.3V
Battery Weight
27KG
• Advanced BMS with current limiting function
• CAN Bus, fully integrates and communicates with leading Inverter brands
• Excellent high temperature performance
• High Cycle Life and Service Life
• 1C High Performance Lithium battery
• High Energy Density and conversion efficiency
• Complete with integrated Battery Management System
• Compatible with most Inverters and chargers
• Low self discharge
• Easy wall mount or shelf rack installation
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
SPECIFICATIONS:
Series
Lithium battery
Model and Capacity
Am-2 2.5kw
Total power consumption
5.5KWh
Rated Capacity
Typical:100Ah
internal Impedance
≤ 150mohm
Nominal Voltage
52.6V
Charging Voltage
54.6V
Standard discharge time
100Ah
Max.Continuous Discharge
100A
Discharge Cut-Off Voltage
37.7V
Battery Weight
39KG
Description
Tork Craft Rotary tool
MODEL:TC08245
WEIGHT:3.04kg
DIM:360.00mm x 426.00mm x 426.00mm
The rotary tool can be used for:
Cleaning
Polishing
Cutting
Sanding
Carving
Description
General Data• Includes 1 x Galvanized M10x25mm Hex Bolt & 1 x Galvanized M10 Hexagonal Nut• Excludes Coach Screws• Universal settings to ensure a perfect fit on Cement & Clay Tile roofs• INGE X & Y Rail fit perfectly on the rail
General Data• Compatible with LifePo4 Battery via RS485• Lithium Battery activation function, which can be triggered by PV or Utility• Pure Sine Wave• Power Factor 1.0• PV Input Voltage 60VDC-500VDC• Built-in 2 MPPT 160A• Can operate without Battery• Detachable dust cover for harsh environment• Optional WiFi remote monitoring• Support multiple output priority: UTL, SOL, SBU, SUB• EQ function to optimize battery performance and extend lifecycle• 1 Year Manufacturers Warranty
General Data• Lithium Battery activation function by PV or Utility• Compatible with LifePo4 Battery via RS485• Pure Sine Wave• Power Factor 1.0• PV Input Voltage 60VDC-500VDC• Built-in MPPT 100A• Can operate without Battery• Detachable dust cover for harsh environment• Optional WiFi remote monitoring• Support multiple output priority: UTL, SOL, SBU, SUB• EQ function to optimize battery performance and extend lifecycle• 1 Year Manufacturers Warranty
Victor 6.2KW 48V Solar Inverter
This advanced 6.2KW off-grid inverter is packed with smart features for efficient solar power management. It's designed for high-performance home or office use and is compatible with lithium batteries.
⚙️ Key Features:
✅ Pure sine wave inverter
✅ 6.2KW / 48VDC / 220-230V AC output
✅ Built-in 120A MPPT solar charger
✅ MPPT range: 60V – 500V DC
✅ WiFi monitoring (optional)
✅ Compatible with LiFePO₄ batteries via RS485
✅ Battery-less operation supported
✅ Lithium battery activation by PV or utility
✅ Dust cover for harsh environments
✅ EQ function for longer battery life
✅ Power factor 1.0
✅ Surge power: 12400VA
✅ 95% PV-to-Inverter peak efficiency
🔌 Technical Specs:
Category
Specification
Rated Power
6.2KW (6.2KVA)
Surge Power
12400VA
Battery Voltage
48VDC
Max PV Input Power
6500W
MPPT Voltage Range
60V – 500V
Max PV Open Circuit Voltage
500VDC
Max Solar Charge Current
120A
Max AC Charge Current
80A
Max Combined Charge (PV+AC)
120A
Communication
RS485 / RS232
Dimensions (mm)
454 × 354 × 128
Weight
9.55 kg
Ingress Protection
IP21
Operating Temp
-10°C to 55°C
📱 Remote Monitoring Support
Optional WiFi module for real-time tracking via Android / iOS App.
📦 What’s in the Box?
1x 6.2KW Victor Inverter
User Manual
Communication Cables
Optional WiFi dongle (sold separately)
Experience the power of VOLTA 12kw Single-Phase Hybrid Inverter - Model 12! The sleek and efficient design combines the best of both worlds, providing reliability and versatility. Say goodbye to power outages and hello to uninterrupted energy! Upgrade to VOLTA and elevate your energy game.
HIGH EFFICIENCY
200% PV oversized and up to 110% AC output200% peak EPS apparent power, 10 sBuilt-in shadow tracking
INTELLIGENT
Single unit UPS-level switching time < 4 msCT compatible, loads respond within 0.3 sSmart loads managementMax. charging / discharging current of 250 AGenerator compatibleMax 10 units parallel
SAFE
Battery terminal temperature detectionIP65 protection degreeIntegrated SPDAFCI protection (optional)
ECONOMICAL
Max. DC input current 16A, support for high powersolar panelLow start up voltage brings longer operation time
The VOLTA 15kw three-phase LV Hybrid - Model 15 is a powerful and efficient energy solution. With its Volta three-phase hybrid inverter, it maximizes energy storage and usage for optimal cost savings. Perfect for commercial or residential use.
HIGH EFFICIENCY
200% PV oversized and up to 110% AC output200% peak EPS apparent power, 10sBuilt-in shadow tracking
INTELLIGENT
Single unit UPS-level switching time < 4ms (Typical)CT compatible, loads respond within 0.3sMax 10 units parallelMax. charging / discharging current of 300AGenerator compatible
SAFE
IP65 protection degreeIntegrated SPDAFCI protection (optional)
ECONOMICAL
Max. DC input current 18A per channel, supports highpower solar panelsLow start-up voltage brings longer operation time
Volta 60kWh High-Voltage Tower Battery (HV-10 614V100Ah)
Modular | Scalable | Industrial-Grade Backup Power
The Volta 60kWh HV Battery Tower is a powerful, modular lithium iron phosphate (LiFePO₄) energy storage system designed for both residential and commercial applications. Built for high performance, long lifespan, and compatibility with leading inverter brands, it’s an ideal choice for large-scale solar backup or off-grid installations.
🔋 Key Features
Massive Storage Capacity: Up to 60kWh total with stackable 10.24kWh modules
Modular Design: Supports 2–7 battery modules per tower, expandable via parallel clusters
High Efficiency: Up to 98% round-trip efficiency with 90% depth of discharge
Smart Battery Management (BMS): Real-time cloud balancing, automatic master/slave ID, OTA firmware updates
Wide Compatibility: Works with Volta, Deye, Sunsynk, and Solis hybrid inverters
Reliable & Safe: Built-in protections for overvoltage, short circuit, thermal safety, and more
⚙️ Technical Specs
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage: 102.4V × number of modules
Voltage Range: 89.6V – 115.2V × number of modules
Energy per Module: 10.24kWh
Max Capacity: Up to 60kWh
Cycle Life: ≥7000 cycles @ 80% DOD
Charge/Discharge Current: Up to 100A
Communication: CAN / Modbus RTU
Cooling System: Natural convection with high-volume air-cooled fans
Protection Rating: IP20
Certifications: CE, UN38.3, UL1973, IEC62619, UL9540A
✅ Why Choose the Volta HV Tower?
Power Security: Keep essential systems running during power outages
Cost Savings: Reduce electricity bills by maximizing solar storage
Flexible & Future-Proof: Easily scale your system as energy demands grow
Built for Harsh Environments: Durable design with advanced thermal and electrical protections
🔌 Seamless Compatibility
Fully compatible with hybrid inverter systems from:
Volta
Deye
Solis
Sunsynk
This high-voltage, high-capacity energy storage tower is the perfect solution for businesses, farms, lodges, and homes needing long-term power reliability and scalable storage.
Model No
BHS-1/1
Max Number of DC input
1
Max Number of DC output
1
Max Input Voltage
1000VDC
Max Input Current each String
550A
Max Output Current
550A
Max Discharge Current of SPD
/
Protective Class
/
Protection Degree
IP65
Protection Degree
20-60
VOLTA CUBE 71-50
71kWh Outdoor energy storage all-in-one
CUBE BOX61/71 features a modular design. It seamlessly integrates lithium iron phosphate batteries, racks, BMS, PCS, air-conditioning, temperature control, fire detection, and automatic extinguishing systems.
This innovative design ensures safety, reliability, and rapid deployment. The product is also cost-effective, highly energy efficient, and equipped with intelligent management capabilities.
Features :
Exquisite craftsmanship Higher specific energy, more environmentally friendly.
Safe and reliable Longer cycle life.
Integrated design Convenient installation and higher efficiency.
Smart and friendly WiFi remote Monitoring (optional)
Remote Monitoring Self-developed APP
Smart BMS Big Power Smart BMS
Full Bracket Design, Full space for each cell’s best performance

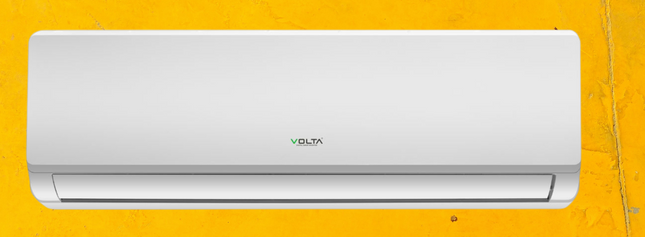

Volta Smart Aircon Inverter – Intelligent Cooling & Heating for Every Space
Upgrade your home, office, or business with the Volta Smart Aircon Inverter—a sleek, AI-powered solution for year-round comfort. Whether it’s sweltering summer days or chilly winter nights, Volta delivers rapid climate control, energy efficiency, and smart technology at your fingertips.
💡 Available Capacities & Ideal Room Sizes:
VOL-12SA/XA81 (12000 BTU) – Perfect for medium-sized spaces like offices or living rooms.
VOL-18SA/XA81 (18000 BTU) – Great for larger rooms or open-plan areas.
VOL-24SA/XA81 (24000 BTU) – Ideal for spacious zones or multiple connected rooms.
🌟 Key Features:
Rapid Cooling & Heating:Enjoy fast comfort with cooling to 18°C in 30 seconds and heating to 40°C in just 60 seconds.
AI Inverter Technology:Automatically adjusts performance for optimal temperature control and energy savings.
Eco Mode:Maintains a steady 26°C while significantly reducing power usage.
Smart Airflow Distribution:Features shower-style cooling and blanket-style heating for balanced, room-wide comfort.
Sleep Mode:Intelligent adjustments for restful sleep and reduced night-time power consumption.
Self-Diagnosis System:Displays error codes for easy troubleshooting and faster maintenance.
Filter Cleaning Reminder:Get notified when it’s time to clean the filter, ensuring top air quality and system performance.
Titan Gold Technology:Corrosion-resistant fins protect against mold and ensure long-term durability.
Remote & App Control:Use the included remote or connect to the Smart App to control your aircon anytime, anywhere.
✅ Why Choose Volta?
✔ Fast, reliable climate control✔ Lower energy bills with AI inverter tech✔ Smart features for ultimate convenience✔ Models to suit any room size
Experience next-level comfort with the Volta Smart Aircon Inverters—built for modern living, smart control, and effortless efficiency.
