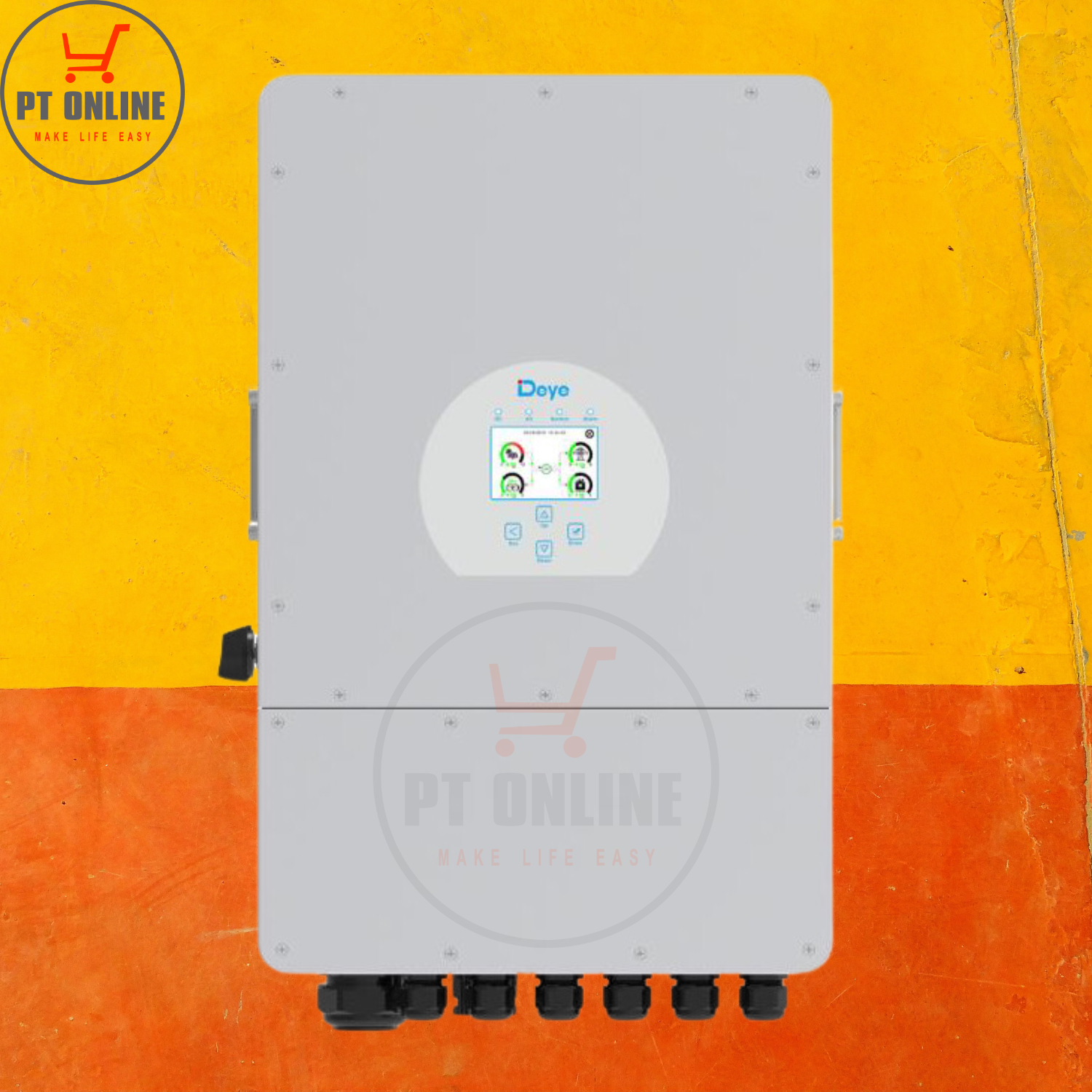

Deye 10KW Hybrid Inverter Including Wifi Dongle

-Colorful touch LCD, IP65 protection degree
-AC couple to retrofit existing solar system
-Max. 16 pcs parallel for on-grid and off-grid
-operation; Support multiple batteries parallel
-Max. charging/discharging current of 250A
-6 time periods for battery charging/discharging
-Support storing energy from diesel generator

AC Input/Output Data:

Rated AC Input/Output Active Power (W) 10000
Max. AC Input/Output Apparent Power (VA) 11000
Rated AC Input/Output Current (A) 45.5/43.5
Max. AC Input/Output Current (A) 50/47.9
Max. Continuous AC Passthrough (grid to load) (A) 60

PV String Input Data:

Max. PV Access Power (W) 20000
Max. PV Input Power (W) 16000
Max. PV Input Voltage (V) 500
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Rated PV Input Voltage (V) 370
