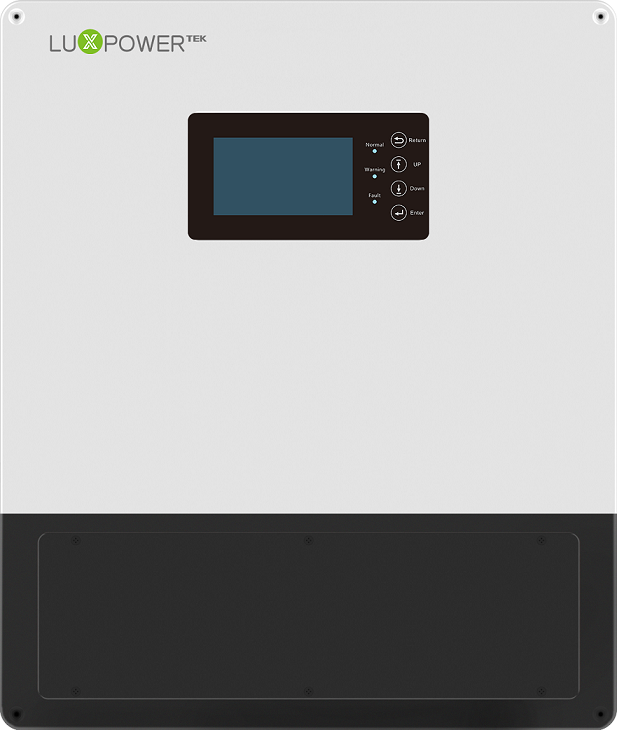

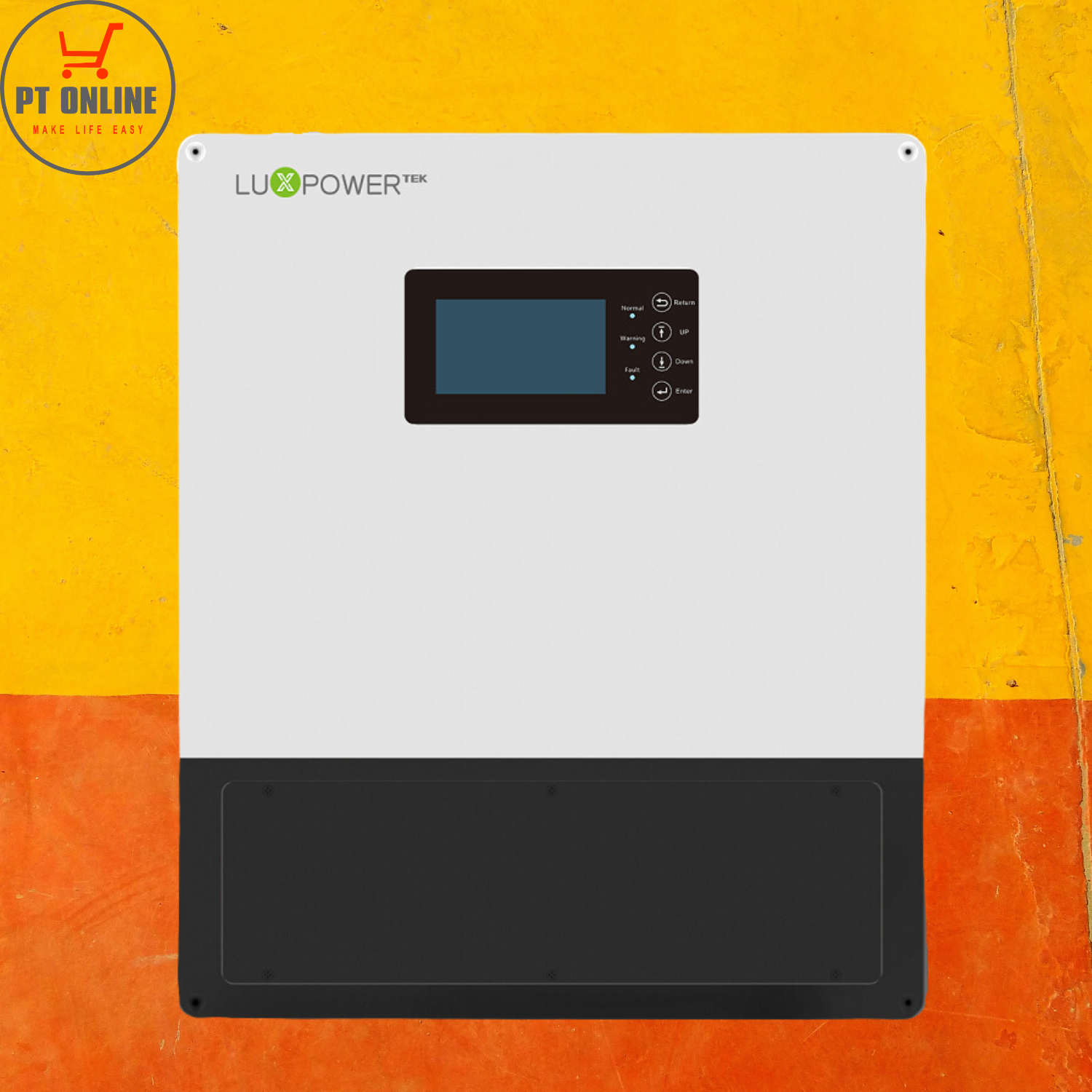

Lux Power Inverter 10Kw Hybrid Single Phase

Lux Power: Inverter 12Kw Hybrid Single Phase Lux Power Inverter 10Kw Hybrid Single Phase LUXPOWER SNA6000 6kW Offgrid inverter
Sold out
Sale
R 36,500.00
R 39,000.00 You Save: R 2,500.00 (6%)

Availability: In stock

Collection: Luxpower, Solar Inverters

Sku: LXP-LB10K

Vendor: Lux Power

General Data
• Advanced Parallel up to 120Kw
• Separate Generator Interface Available
• Colour LCD, IP65
• Transformerless Design

Description

Battery Parameters
• Compatible Battery Type: Lead-acid / Lithium
• Nominal Battery Voltage: 48VDC
• Battery Voltage Range: 40VDC-60VDC
• Maximum Charge / Discharge Current: 210A
• Maximum Charge / Discharge Power: 10 000W

DC PV Input
• Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
• Maximum PV Input: 16 000W
• DC Input Voltage Range: 100VDC-600VDC
• Nominal DC Input Voltage: 360VDC
• Full Power MPPT Voltage Range: 210VDC-500VDC
• Maximum DC Input Current: 25A / 15A / 15A
• MPPT Number / Strings per MPPT: 3(2/1/1)

AC Output (Grid)
• Nominal Power: 10 000W
• Nominal AC Voltage: 240VAC
• Operating Voltage Range: 180VAC-270VAC
• Maximum Continuous AC Current: 41.6A @ 240VAC
• Nominal AC Frequency: 50Hz / 60Hz

UPS Output (With Battery)
• UPS Max Output Power: 10 000W
• UPS Nominal Output Voltage: 240VAC
• UPS Nominal Output Frequency: 50Hz / 60Hz
• UPS Nominal Output Current: 41.6A @ 240VAC
• Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
• Switching Time: <20ms

Environment Limit
• Ingress Protection: IP65
• Operating Temperature Range: -25°C to +60°C
• Cooling: Fan
• Communication: RS485 / WIFI / CAN
