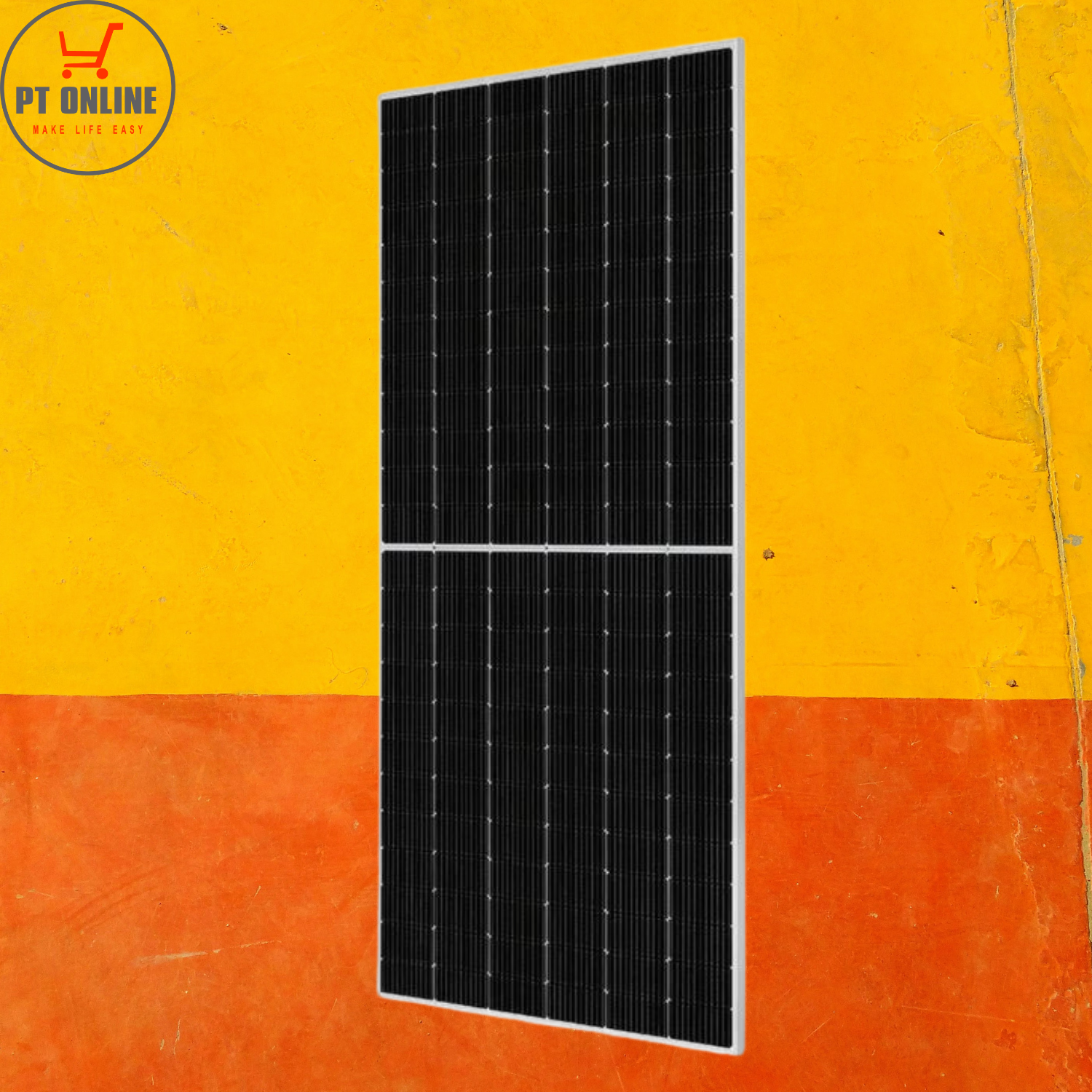

Assembled with 11BB Bifacial PERCINM cells and gapless ribbon connection technology, these double glass modules have capability of converting the incident light from the rear side together with the front into electricity, providing higher output power, lower temperature coefficient, less shading loss, as well as enhanced tolerance for mechanical loading.

Certifications

• IEC61215, IEC61730, UL 61215, UL 61730
• ISO9001:2015: Quality Management System
• ISO14001:2015: Environment Management System
• ISO45001:2018 Occupational health and safety management systems
• IEC 62941: 2019 Terrestrial photovoltaic (PV) module - Quality system for PV module manufacturing.

Features

• Higher Output Power.
• Less shading effect
• More reliable, more stable power generation
• Lower temperature coefficient

Superior Warranty

• 12 Year Product Warranty
• 30 Year Linear Power Warranty

• 0.45% Annual Degradation Over 30 years

Specification

• Model: JAM72D30-545GB
• Cell: Mono
• Weight: 31.8kg
• Dimensions: 2278 x 1134 x 30 mm
• Cable cross section size: 4mm² (IEC), 12 AWG (UL)
• No. of cells: 144 (6x24)
• Junction Box: IP68, 3 Diodes
• Connector: QC 4.10-351 / MC4-EVO2A
• Cable Length (including connectors): Portrait: 300mm (+)/400mm (-): 800mm (+)/ 800mm (-) (Leapfrog), Landscape: 1400mm (+)/1400mm (-)
• Front/Back Glass: 2.0mm/2.0mm

Electrical Parameters at STC

• Rated Maximum Power (Pmax) - 545W
• Open-circuit Voltage (Voc) - 49.75V
• Maximum Power Voltage (Vmp) - 41.80V
• Short-circuit Current (Isc) - 13.93A
• Maximum Power Current (Imp) - 13.04A
• Module Efficiency STC (%) - 21.1%
• Power tolerance - 0~+5%
• Temperature coefficients of Isc - 0.045%/℃
• Temperature coefficients of Voc - -0.275%/℃
• Temperature coefficients of Pmp - -0.350%/℃
• STC: Irradiance 1000Wm² / cell temp 25℃, AM 1.5G

Electrical Characteristics with 10% Solar irradiation ratio

• Rated Max Power (Pmax) - 583W
• Open-circuit Voltage (Voc) - 50.03V
• Maximum Power Voltage (Vmp) - 41.78V
• Short-circuit Current (Isc) - 14.91A
• Maximum Power Current (Imp) - 13.95A

Operating Conditions

• Maximum system voltage: 1500V DC
• Operating Temp: -40°C-+85°C
• Max series fuse rating: 30A
• Max. static load- Front: 5400Pa
• Max. static load- Back: 2400Pa
• NOCT: 45± 2°C
• Bifaciality: 70%± 10%
• Fire Performance: UL Type 29
