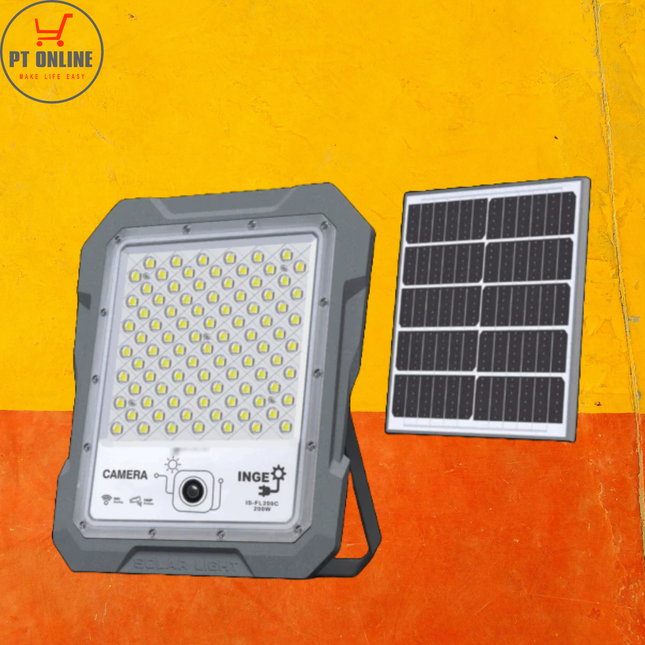

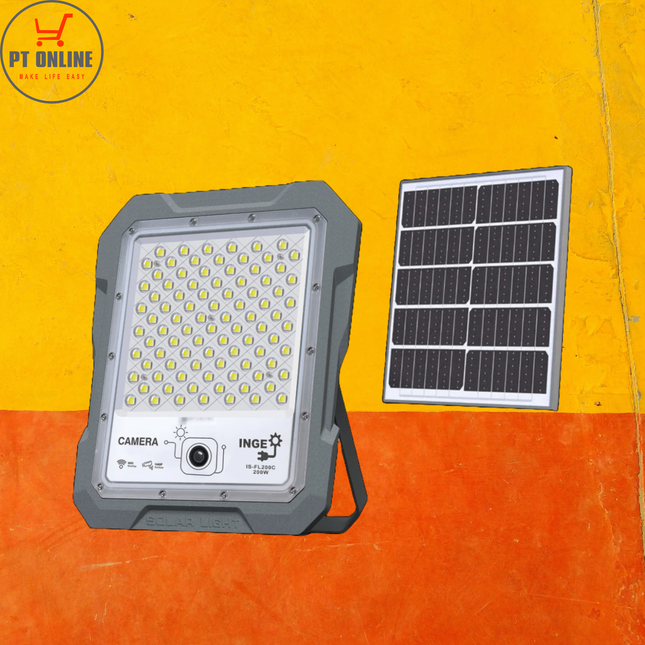

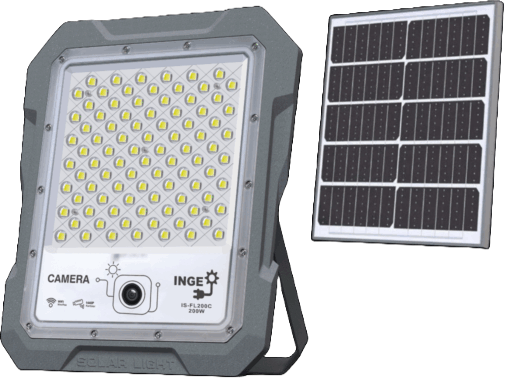

• Lamp Housing: Aluminium• Lamp Size: 271mm*220mm*50mm• Panel Size: 430mm*350mm*20mm• IP65 Rated• Camera Resolution: 1440P day and night full color, 4M pixels• Camera Lens: 4mm Focal Length; fixed lens• Connectivity: WiFi• Remote ON / OFF through APP

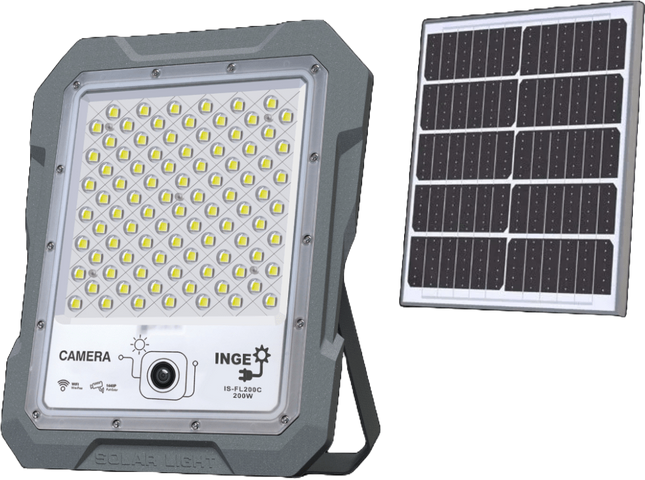

General Data• Lamp Housing: Aluminium• Lamp Size: 311mm*264mm*55mm• Panel Size: 480mm*400mm*20mm• IP65 Rated• Camera Resolution: 1440P day and night full color, 4M pixels• Camera Lens: 4mm Focal Length; fixed lens• Connectivity: WiFi• Remote ON / OFF through APP
Description
General Data• Ultra-Safe LFP material• Integrated Fire Suppression• 200A Continuous Power Delivery• Short circuit protection• Easy remote upgrade• WiFi / Bluetooth available• Wide range Inverter compatibility• Multi Level protection to avoid Over-Discharge• Smart BMS management for a longer Battery lifespan• Parallel up to 35 Units• Quality design for robust applications• Stackable, Floor-Standing & Wall-Mount installations• Includes Foot Brackets & Wall-Mount Brackets• Optional Wheels are sold separately• 10 Year / 8000 Cycles Warranty• 900mm x 445mm x 230mm x 120Kg
All LEMOEN batteries use LifePO4 cells, our cell manufacturer is the leader in cell manufacturing for EV and Energy Storage batteries in the world.
Excellent BMS design, with a 10 Year Cell Warranty & 5 Year BMS Warranty.
Got positive and negative short circuit protection on the BMS.
Lemoen high quality and durable BMS got communication with most Inverter manufactures.
Can be Paralleled up to 15 units.
Lemoen 11CM Slim line design that gives the least obstruction.
1C charge and discharge rate.
Lemoen battery is design for a long service life, beyond 15 years

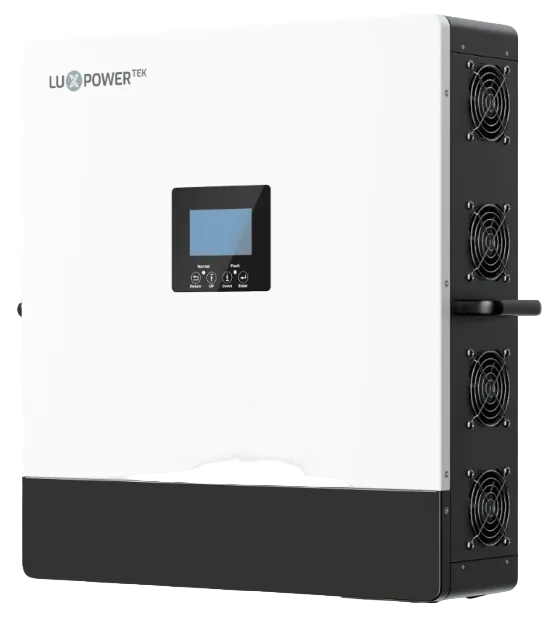

General Data• Maximum PV Input: 24kW with 2 MPPT• Support 16 units in Parallel for On/Off Grid• Maximum Charging and Discharging Current: 250A• New Design for Easier Installation• Support Hybrid Working Modes• Intelligent Operating Mode to Lower Energy Costs• Separate Gen Port for•• Auto Start/Stop•• Working with the existing Grid-Tied System•• Smart Load Management
General Data• Maximum PV Input: 24kW with 2 MPPT• Support 16 units in Parallel for On/Off Grid• Maximum Charging and Discharging Current: 250A• New Design for Easier Installation• Support Hybrid Working Modes• Intelligent Operating Mode to Lower Energy Costs• Separate Gen Port for•• Auto Start/Stop•• Working with the existing Grid-Tied System•• Smart Load Management
Lux Power 5KW OFFGRID Inverter (SNA5000WPV)
Description
Applicable for pure off grid/ backup power / self-consumption / on grid situation
Integrated with 2 MPPT solar charge controllers, MPPT ranges 120V~385V
Rated power 5KW, power factor 1
Be able to run with or without battery in Ongrid and Offgrid mode
With separated generator input interface, able to control generator remotely
Solar and utility grid can power loads at the same time
With integrated advanced parallel function, up to 9 pcs max paralleling
Support CAN/RS485 for Li-ion battery BMS communication
WIFI/ GPRS remote monitoring , setting and firmware update, support website, free IOS/Android APP
DATASHEET
MANUAL
WIFI SETUP
BMS - SHOTO
BMS - DYNESS
BMS - PYLONTECH
Luxpower Off-Grid Pure Sine Wave Inverter (SNA6000) - 6Kw / 6000W / 48V / MPPTThe Luxpower 6kW Eco Hybrid Inverter SNA6000 suits both on-grid and off-grid solar systems. With a 6kW output power and compatibility with up to 16 units in parallel, it's a robust choice for larger installations.The Luxpower 6kW Eco Hybrid Inverter SNA6000 supports various lithium batteries and includes a built-in MPPT solar charge controller.SpecificationsModel: SNA 6000Output Power: 6kWInput (PV DC): 6000WMax. PV Array Power: 8000W (4000/4000)Rated PV Input Voltage: 320VNumber of Independent MPPT Inputs: 2PV Input Voltage Range: 100 / 480VMPPT Voltage Range: 120 / 385VStart-Up Voltage: 100VMax. PV Input Current per MPPT: 17/17AMax. PV Short-Circuit Current Input per MPPT: 25/25AWarranty: 2 YearsCooling Method: FanDimensions: 330x505x135mmWeight: 14.5kgDATASHEET
A pack of 1x Male and 1x Female cable couplers
(including insulating part)
Snap-in lock
Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
Tried and tested plug connectors, 14 years of experience in the field
Suitable for assembly with cross-sections of 4 and 6 mm²
Rated current: 39 A (for 4 and 6mm2 cable)
Rated voltage: 1000 V IP Rating: IP65 / IP68 when mated (1h / 1min) Cross section: 4 - 6 mm² Outer diameter cable (dA): 5,5 - 9 mm
Please use correct MC4 approved tools to crimp these connectors on to bare cables.
DATASHEET
INSTALLATION MANUAL
