3C peak value
Up to 81.9 kWh in Low Voltage Connection
Real-time monitoring System and remote Debug
Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
Extended Operating Temperature -4℉ to 140℉
The thinnest Home ESS Ever built with just 90mm thickness
Certification: IEC62619, CE, UL1973, UN38.3
Exceptional lifespan Up to 8000 Cycles
Cycle One to Several Times Per Day
Extended Warranty Up to 15 years
PRODUCT INTRODUCTION
PowerLine is a ultra-thin wall-mounted battery can be mounted directly to the wall with a simple snap-in installation. The battery modules utilize FPC technology to ensure more consistent quality, and are certified by UL1973 to deliver up to 98% efficiency. In addition, this product can be cycled 6000 times at 100% DOD and still have 80% capacity. The battery can last up to 20 years for optimal performance and cost savings.
The LFP 51.2V 135Ah Energy Storage Systems are a family of 51.2V battery module s and accessories. The 51.2V family is designed as a drop-in replacement for similar sized lead-acid batteries offering twice the run-time and nearly half the weight. The 51.2V series is designed for lower voltage, lower power and longer run-time applications. They are built with LFP Technology that offers outstanding intrinsic safety and excellent float and cycle life resulting in low cost of ownership.
51.2V 7kw Batteries are designed for lower voltages, long run-time applications. LFP Technology offers safety and great float and
cycle life ending in low cost.
Features
★ Lithium Ion technology★Designed for 15 to 18 years service life★Battery stores data which can be extrapolated when needed.★No Maintenance needed, can be paralled.★Less than tree 3% self discharging
BSL 48V (51.2V) 8.8kWh 172Ah Stubby LiFePO4 battery
BSL 48V 8.8 kWh batteries are widely used in grid-connected or off-grid solar battery storage systems and can be extended to any large-scale home or commercial system. Using the latest LiFePo4 battery, the LiFePo4 battery life cycle is much longer than other types of lithium batteries, reducing maintenance costs in use.Deep cycle lithium 48v 8.8kwh battery can be used with the most popular inverter.
Communication Compatible Inverters:
Victron
Sunsynk / Deye
Features:
Eco-friendly
Lithium iron phosphate battery(LiFePO4)
Currently the safest lithium technology
Excellent resistance to abuse
Less than 3% self-discharging
Maintenance-free, modular, and lightweight
Up to 60% weight saving
Battery monitoring storage history
Built-in safety protection
Quality guaranteed
10 Years Warranty
15-18 Years Designed service life
250A DC Breaker–on/off switch
Applications
Marine Applications
Uninterruptable Power Supply
Energy Storage Systems
Floor Sweeper
Electrical Vehicles
Communications Systems
Safety
BSLBATT® batteries are based on Lithium iron battery technology (LiFePO4).
This is the safest Lithium technology available today.
On top of that our bespoke casing and electronics further increase safety and durability.
Technology
BSLBATT’s BATTERIES do not contain leadLiFePO4 technology is an environmentally friendly way to store energy.
DC 3 Pole Battery Fuse Disconnector Box 160A 48V with 2 x 125A/160A Fuse Links
Battery Disconnect Fuse Holder ideal for 3Kw-5Kw inverters, between battery and inverter.
Poles 3
Use NH00 60A-160A blade fuse
50Ka rating
Description
The function of a fuse holder isto integrate fuses safely in electrical circuits,ensure a robust current path (voltage does not creep to other components)and provide a method to replace fuses once they manage overcurrent events as intended.
NH fuses (also known as NH Knife Blade Fuses or DIN NH Blade Fuses) were defined in the German DIN standard 43620 around 1944. They are primarily designed as general purpose fuses for the protection of conductors. NH fuses are one-time fuses, meaning once they have blown, they must be replaced with a new fuse with the same characteristics.

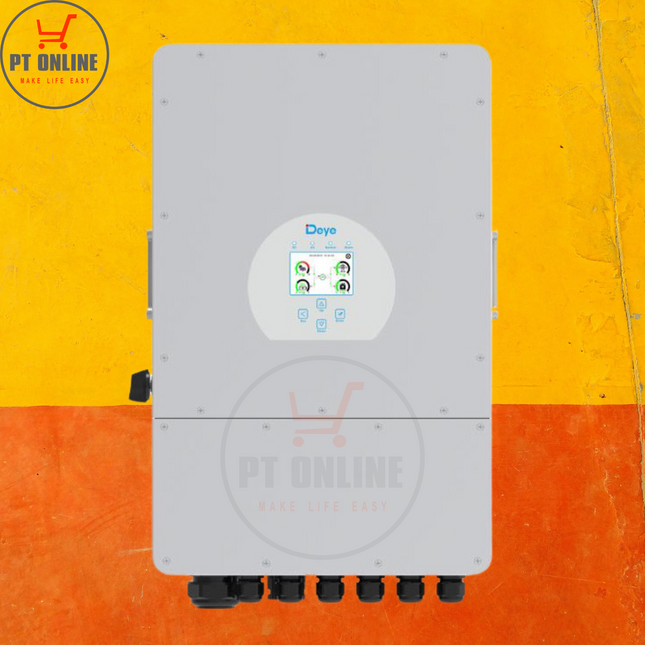

Deye 10KW Hybrid Inverter Including Wifi Dongle
-Colorful touch LCD, IP65 protection degree-AC couple to retrofit existing solar system-Max. 16 pcs parallel for on-grid and off-grid-operation; Support multiple batteries parallel-Max. charging/discharging current of 250A-6 time periods for battery charging/discharging-Support storing energy from diesel generator
AC Input/Output Data:
Rated AC Input/Output Active Power (W) 10000Max. AC Input/Output Apparent Power (VA) 11000Rated AC Input/Output Current (A) 45.5/43.5Max. AC Input/Output Current (A) 50/47.9Max. Continuous AC Passthrough (grid to load) (A) 60
PV String Input Data:Max. PV Access Power (W) 20000Max. PV Input Power (W) 16000Max. PV Input Voltage (V) 500Start-up Voltage (V) 125MPPT Voltage Range (V) 150-425Rated PV Input Voltage (V) 370
PLEASE NOTE: SOLAR PANELS NOT INCLUDED.
Description
100% energy saving in day time. Only solar panel drive.
T3 Compressor
AC grid power limiter, limit AC power from 0-600W
AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)
No inverter, no battery, no charge controller
Full DC driven
Wide operating temperature (-10℃ to 58 ℃)
Long warranty years
Deye hybrid ACDC solar air conditioners require no batteries, and only a few PV panels to deliver huge savings. Duringthe day, when air conditioning is needed the most, you can operate this unit partly or up to 100% by it’s independent solarpanels to achieve maximum efficiency. At night, you can continue to save due to it’s high efficiency.The WIFI functionality allows full control, daily and weekly timers, complete visibility with AC and DC consumption andthe history of all power consumption.Advised Solar Panels: (3 – 4)* 330W in series
Dimensions & certification
Net weight indoor: 9kg
Net weight outdoor: 34kg
Net size indoor (mm): 845 x 205 x 295
Net size outdoor (mm): 802 x 564 x 323
Description
General Data• Colorful touch LCD with IP65 Protection Degree• AC Couple to retrofit existing Solar System• Maximum 16 Units Parallel for On-Grid and Off-Grid operation• Supports Multiple Batteries in Parallel• Maximum Charging / Discharging Current of 290A• 6 Time Periods for Battery Charging / Discharging• Support for storing Energy from Diesel Generator• Self-Consumption and Feed-In to Grid• Auto Restart while AC is recovering• Programmable Supply-Priority for Battery or Grid• Programmable multiple operation modes: On-Grid, Off-Grid and UPS• Configurable Battery Charging: Current / Voltage based on applications by LCD Setting• Configurable AC / Solar / Generator Charger priority by LCD Setting• Compatible with Mains Voltage or Generator Power• Overload / Over Temperature / Short Circuit protection• Smart Battery Charger design for optimized Battery performance• Limit Function to prevent excess power overflow to the Grid• Supports WIFI monitoring and 2 Strings of each MPPT• Smart settable three stages MPPT Charging for optimized Battery performance• Time-Of-Use Function• Smart-Load Function
Related products
Description
Package Includes WIFI Dongle & Current Transformer
Max Efficiency of 97.6%
2 MPPT (Maximum Power Point Tracker)
RS485 / CAN Communication Ports
Load or Home power first with Zero Export to the Grid
IP65 Ingress Protection
High Power Factor
2 kinds of AC couple method to update existing solar system to energy storage system
Supports Generator Connection
Six stages time of use setting
Support multiple parallels
Touchscreen Interface
Update existing solar on-grid system to a hybrid system
Use Gen input as crucial load output
Compatible with SHOTO, PYLONTECH, LG, BYD etc, brand battery
Output: 230V/400V AC Three Phase @ 50Hz/60Hz
PV Rapid Shutdown Control, PV Arc Fault detection, input lightning protection, multiple inverters in parallel
Multiple working modes: Grid-Tied, Hybrid or Off-Grid
Simultaneously manages power to / from Panels, Batteries, Grid, Load, and Generator
UPS time: less than 5ms
Charge and Discharge up to 240A, 12Kw
Wall Mounted
DATASHEET
Manual 1/2
Manual 2/2
Additional information
Weight
36.8 kg
Dimensions
65.8 × 42.2 × 28.1 cm
⚡ Deye 15kW Three Phase LV Hybrid Inverter – SUN-15K-SG05LP3-EU-SM2
VOC: 800V | Battery: 48V | CT & WiFi Included
The Deye 15kW Three Phase Low Voltage Hybrid Inverter is a powerful and flexible solution for residential, agricultural, or commercial solar systems. Designed for both on-grid and off-grid applications, this advanced inverter seamlessly integrates solar, battery, and grid power with exceptional efficiency and intelligent energy management.
✅ Key Features:
High PV Capacity: Supports up to 24,000W of solar input with a max voltage of 800V
Massive Battery Current Handling: Charge/discharge up to 350A
Flexible 48V Battery Support: Compatible with lithium-ion or lead-acid batteries
Smart Load Management: 6 configurable time slots for optimized battery usage
Full 3-Phase Output: 100% unbalanced load handling – perfect for uneven 3-phase systems
Parallel Ready: Connect up to 10 units for large-scale installations
AC Coupling Compatible: Retrofit existing solar systems easily
Built-in Monitoring: WiFi & CT module included for real-time system tracking
🔒 Advanced Safety & Protection:
Reverse polarity, overcurrent, short circuit, overvoltage, and thermal protection
Residual current & arc fault detection
Type II surge protection (AC & DC sides)
Certified for global grid codes (IEC, VDE, CEI, NRS, EN, etc.)
📐 Technical Specs:
Rated Power: 15,000W
Max PV Input Power: 24,000W
MPPT Voltage Range: 160–650V
Max PV Voltage: 800V
Max Efficiency: 97.6% | MPPT Efficiency: >99%
IP Rating: IP65 – Weather-resistant for outdoor installations
Cooling: Intelligent air cooling
Weight: 51.9kg
Dimensions: 456 × 750 × 268.5 mm
Noise Level: <60dB
Grid Type: 3L + N + PE (Three-phase + Neutral + Earth)
💡 Perfect For:
Medium to large residential homes
Farms or agricultural energy systems
Light commercial or industrial buildings
Systems requiring high battery throughput and unbalanced 3-phase loads
General Overview
The Deye SE-F16 is a premium 16 kWh low-voltage lithium-ion battery (51.2 V / 314 Ah) built with LiFePO₄ chemistry for safety, long cycle life, and high performance. It integrates with compatible hybrid inverters via CAN and RS485 communication and supports Bluetooth App monitoring.
Key Features
16 kWh energy storage with 314 Ah nominal capacity
Up to 32 units in parallel for large-scale systems
≥ 6000 cycles (25 °C, 70% EOL)
High continuous discharge current: 230 A (peak 280 A for 10 s)
Built-in Battery Management System (BMS) with active fuse
Monitoring via Bluetooth App, CAN 2.0, and RS485
Flexible installation: wall, floor, or stack mount
Natural cooling, maintenance-free
Specifications
Model
Deye SE-F16
Chemistry
LiFePO₄
Nominal Voltage
51.2 V
Operating Voltage
44.8–57.6 V
Nominal Capacity
314 Ah
Nominal Energy
16 kWh
Recommended DoD
90%
Cycle Life
≥ 6000 cycles
Max Charge Current
160 A (peak 280 A for 10 s)
Max Discharge Current
230 A (peak 280 A for 10 s)
Scalability
Up to 32 units in parallel (64 with CAN-Box)
Enclosure Rating
IP21 (indoor)
Working Temperature
Charge 0–55 °C / Discharge −20–55 °C
Storage Temperature
0–35 °C
Dimensions (W×H×D)
400 × 708 × 233 mm (without bracket)
Weight
109 kg
Communication
CAN 2.0 / RS485 / Bluetooth / App
Certifications
UN38.3, MSDS, CE, CB
Compatibility
Compatible with Deye low-voltage hybrid inverters and other brands via CAN or RS485.
Package Contents
SE-F16 Battery Module
User Manual
Communication Cable (1000 mm)
Ground Cable (1000 mm)
Positive & Negative Power Cables (1 AWG 1000 mm)
Mounting Hooks + Expansion Bolts
Optional: Wheels for floor installation
Safety
Install by qualified personnel only. Do not connect directly to AC or PV panels. Use with compatible hybrid inverters in lithium mode. Keep away from water and open flames.
Deye 16kw hybrid inverter is an innovative and smart solar hybrid inverter that provides solar energy for houses and commercial buildings.
This 16kw Deye hybrid inverter supports the option of on-grid and off-grid power to protect your investment in PV Plants by providing an alternative source of electricity when grid power is interrupted. It has a max 16pcs parallel for on-grid and off-grid operation, efficient MPPT tracking algorithm makes it ideal for a PV power plant or residential rooftop systems, supports multiple batteries parallels, and has max charging and discharging current of 290A. In summary, the 16kw Deye Hybrid Inverter is a perfect replacement for your existing DC or AC coupling inverter in existing PV power plant.
The Deye Hybrid Inverter is a reliable and powerful inverter that allows you to make the most of your solar power. With a maximum output power of 16kW, the Deye Hybrid Inverter can be paired with up to 16 solar panels to harvest the sun’s energy. The Deye inverter also has the capacity to store power from up to 5 different batteries.
Deye 16KW Hybrid Inverter has the following features:
A high-resolution LCD screen gives you all the information you need about your inverter.
IP65 protection degree.
DC couple and AC couple to retrofit existing solar system.
You can connect up to 16 Deye Inverters in parallel, making it possible to have AC output of up to 256kW with one input PV array!; Support multiple batteries parallel.
Max. charging/discharging current of 290A.
6 time periods for battery charging/discharging.
Support storing energy from a diesel generator.
LCD Touch display and buttons, simple solar system for residential use.
Monitoring is possible via a web browser or mobile app, so you can see how your solar system is performing at any time.
The Deye inverter is a hybrid inverter that uses lithium-ion and lead-acid batteries.
It comes with a warranty of 5 years.
Technical Data.
Model: SUN-16K-SG01LP1-EU
Battery Type: Lead-acid or Li-lon.
Battery Voltage Range: 40-60V.
Max. Charging Current: 290A.
Max. Discharging Current: 290A.
UPS Power: 16000W.
External Temperature Sensor: Yes.
Charging Curve: 3 Stages / Equalization.
Charging Strategy for Li-Ion Battery: Self-adaption to BMS.
PV String Input Data.
Max. DC Input Power: 20800W.
Max. DC Input Voltage: 500V.
Start-up Voltage: 50V.
MPPT Range: 150-425V.
Rated DC Input Voltage: 370V.
PV Input Current: 26A+26A+26A.
Max. PV ISC: 44A+44A+44A.
Number of MPPT / Strings per MPPT: 3/2.
General Data.
Operating Temperature Range: -45~60º C, >45º C derating.
Cooling: Smart cooling.
Noise: <30 dB.
Communication with BMS: RS485; CAN.
Weight: 51.5kg.
Size: 464W×798.4H×300Dmm.
Protection Degree: IP65.
Installation Style: Wall-mounted.
Warranty: 5 years.
Max. Number of Parallel (PCS): 16.
Efficiency.
Max. Efficiency: 97.60%.
Euro Efficiency: 96.50%.
MPPT Efficiency: 99.90%.
PLEASE NOTE: SOLAR PANELS NOT INCLUDED.
Description
100% energy saving in day time. Only solar panel drive.
T3 Compressor
AC grid power limiter, limit AC power from 0-600W
AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)
No inverter, no battery, no charge controller
Full DC driven
Wide operating temperature (-10℃ to 58 ℃)
Long warranty years
Deye hybrid ACDC solar air conditioners require no batteries, and only a few PV panels to deliver huge savings. Duringthe day, when air conditioning is needed the most, you can operate this unit partly or up to 100% by it’s independent solarpanels to achieve maximum efficiency. At night, you can continue to save due to it’s high efficiency.The WIFI functionality allows full control, daily and weekly timers, complete visibility with AC and DC consumption andthe history of all power consumption.Advised Solar Panels: (3 – 6)* 330W in series
Dimensions & Certification
Net weight indoor: 15Kg
Net weight outdoor: 37Kg
Net size indoor (mm): 1085 x 330 x 239
Net size outdoor (mm): 802 x 564 x 323
